24 Ways Damping Adjustable Perfermance Coilover Compatible For Ford Mustang 4th Gen. 1994-2004

SKU
3002203663

Register and log in to view the price.

24 Ways Damping Adjustable Perfermance Coilover Compatible For Ford Mustang 4th Gen. 1994-2004

Application

Compatible For Ford Mustang 4th Gen. 1994-2004


Specification

Top mount: Front camber plate

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Adjustable height: lowering 1-3 inch

Shock Type: Twin tube

Spring Preload: 7-10 mm

Colour: black body with  blue spring

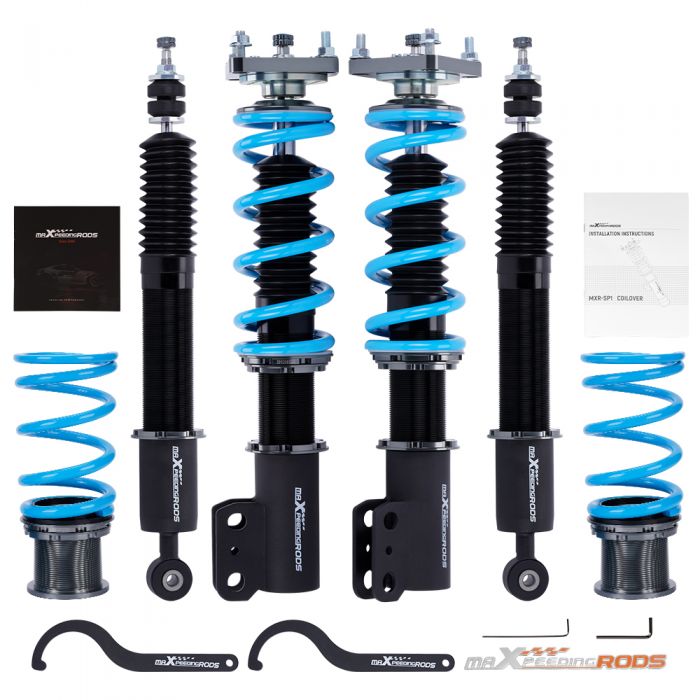

Package included

front complete Coilover assembly

rear springs and spring adjusters and shocks

A pair wrench for height adjustment


Dimension

Package dimension : 71*51*21

Weight: 25000g


Feature

1. Lowered height adjustment from 1" - 3" which allow a lower centre of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your Coilover setup. You will experience better ride quality in all road conditions.

3. Pillow ball top mounts improve the steering feel and response.

4. Full-length dust boot keeps shaft and oil seal from damage.

5. Upgraded damper adjust knob makes damping setting easier.

6. Upgraded valving for a more smooth ride.

7. Twin-Tube structure allows sufficient stroke within the shock absorber.

8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.

10. Decent appearance benefits from CNC machined parts and special surface treatment.

11. Most pieces in our Coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust-resistant components.

12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

14. All coilovers were produced and assembled at the dust-free factory which guaranteed the highest quality.

15. Camber plate top mounts help to eliminate the need for a separate camber kit.
