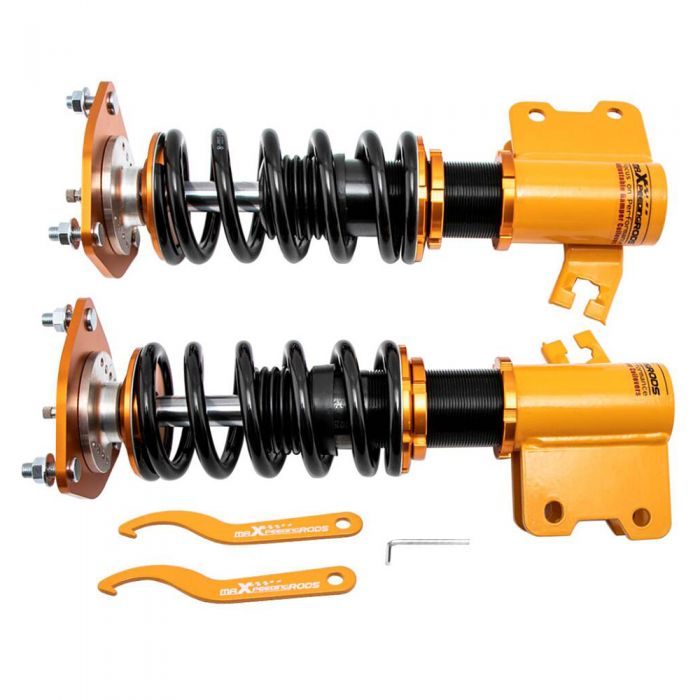

Front Full Adj. Coilover compatible for Nissan Silvia s13 coilovers 180SX 200SX 240sx coilovers strut

SKU

3002103862

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1.Adjustable Damper & Height

24-way adjustable damper force allows the user the ability to dial in your coilovers to any driving needs

2.High Quality Components

Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

3.High Tensile Strength Spring

Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%

4.Twin-tube Construction

Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Nissan S13 Silvia Japan Market 89-93 \
Compatible for Nissan S13 180SX Japan Market 89-98 \
Compatible for Nissan S13 200SX Europe/New Zealand Market 89-94 \
Compatible for Nissan S13 240SX North America 89-90 \
Compatible for Nissan S13 Sileighty Japan Market 98

Specification

Top mounts: pillow ball top mount with camber plate front,\
Damping: 24 levels rebound damping adjustable\
Front Spring Rate: 8kg/mm(448lbs/in)\
Adjustable Height: Yes lowering 1" to 3"\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold

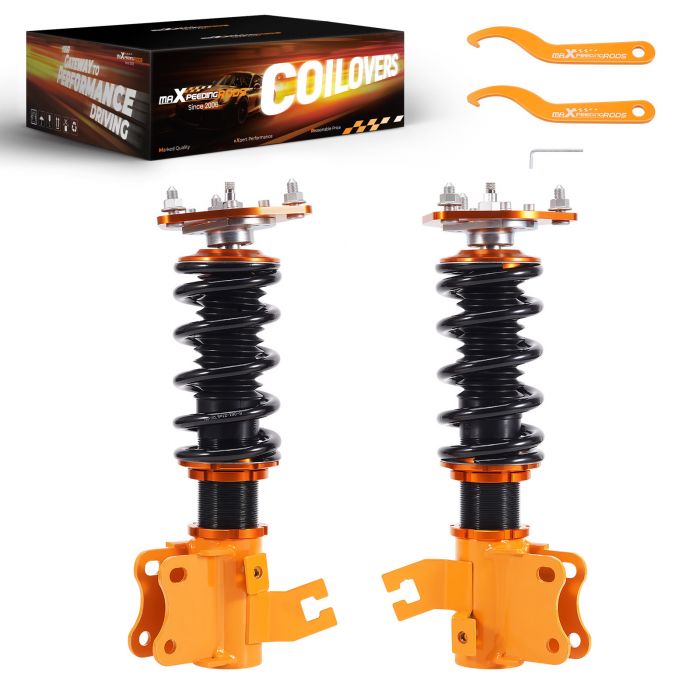

Package included

product included: complete coilovers 2 front ；\
a pair wrench for height adjustment.

Dimension

Gross weight: 12560kg\
Package size: 73*28*21cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)\
3.Pillow ball top mount - It improves the steering feel and response.（Front Only)\
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (only rear)\
5. Twin-Tube structure allows sufficient stroke within the shock absorber.\
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
7. Separate height adjustment does not affect damper stroke.\
8. Height can be adjusted with coilovers installed on the vehicle.\
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
10. Height Adjustment tools included. \
11. Full rebuildable.\
12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
