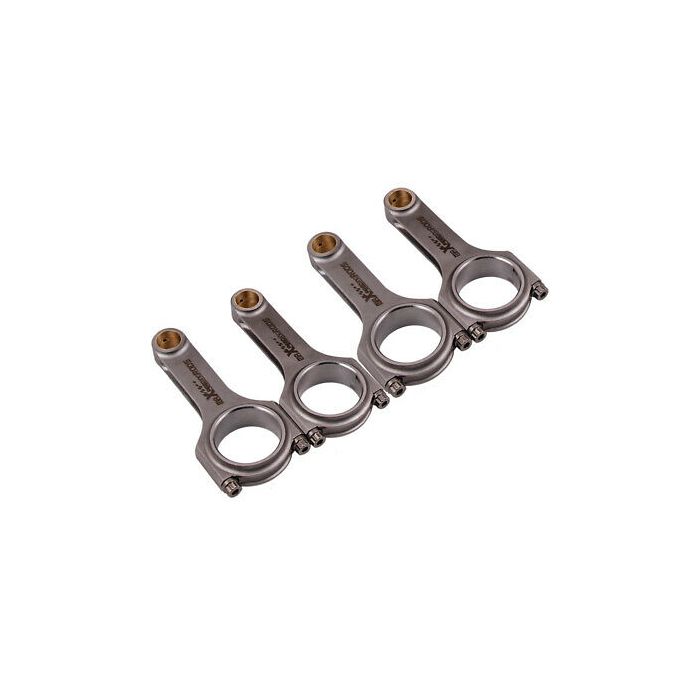

4x Forged H-Beam Connecting Rods+ARP2000 Bolts compatible for Cadillac ATS LTG 2.0T 152.5mm
Introduction
A connecting rod, also called a con rod, is the part of engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft. The connecting rod is required to transmit the compressive and tensile forces from the piston.We provides tough, top-quality connecting rods.
\ \\ \
Specification
\
Quantity: 4 Pieces a set
\
Bolts: Including Genuine 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
\
Material: Forged 4340 aircraft chrome moly quality steel for racing
\
Weight Tolerance: Balanced to +/- 1 gram in set
Top acceleration: 9000rpm
\ \Advertised Horsepower Rating: 200HP/piece
\ \\ \
Application
\
Compatible for Cadillac ATS LTG 2.0T
\ \
Dimensions
\
Center to center length: 152.5mm/6.004''
\
Big end diameter: 52.125mm/2.052''
\
Small end diameter: 24mm/0.945'' ( taper small end )
\
Big end width: 26.467mm/1.042''
\
Small end width: 26.467mm/1.042''
\ \
Sell Points
\
1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
2. Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade；
3. H-Beam design reduces weight without compromising strength；
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
5.100% CNC machined,Precision rod cap alignment dowels；
6.Bores finished to +/- .01 mm；
7.Balanced to within +/- 1 g per rod；
8. Each rod is magnetic particle tested to ensure free of flaws；
9.100% X-rayed, sonic tested；
10.Custom Service.
