4X4 Drop Boxes compatible for Nissan Patrol GQ/GU compatible for Ford 3 4 5 Inch Suspension Lift

SKU

3002909903

Skip to the beginning of the images gallery

Introduction:

To allow for the radius arms to be dropped slightly below the chassis to correct the caster geometry, correctarticulation of the suspension components and improve ride.

Drop Boxes are designed to suit for 3-4" lifts, however can be used on 3-5" lifts as well, on lifts above 5" they can be used in conjunction with caster bushes to further increase caster angle.

When the rear of the Radius Arms are lowered the same amount as the vehicle is lifted the suspension will work, bind free to allow the shocks and the coils to move within their full range.

Application:

Compatible for Nissan Patrol GQ/GU

Compatible for Ford Maverick

Specification:

Condition：Brand New
Lift Size： 3"- 5"
Material：Steel
Package Size：70*20*20cm
Weight：11.3kg

Color: Grey

Featurs:
• Quality-standard Aftermarket Replacement
• OEM Fitment and Function
• Offering direct Bolt-In option for the Drop Boxes.

• No drilling, no cutting, no modifications to your chassis

Advantages:
• Level the radius arms allowing the wheels to better follow the track surface increasing occupantcomfort & traction, in addition to solving caster issues associated with suspension lift.
• Eliminate the preload on the rubber bushings permitting for greater flexibility & longer bushing life.
• By dropping the rear of the radius arms castor angles will be corrected and the drivability of the vehicle will be greatly improved.
• The will gearbox crossmember down 8mm improving pinion angles.
• The push front diff forward by 10mm allowing clearance for larger tyres.
• Give a smoother ride due to reduced resistance of suspension components in their natural arc.

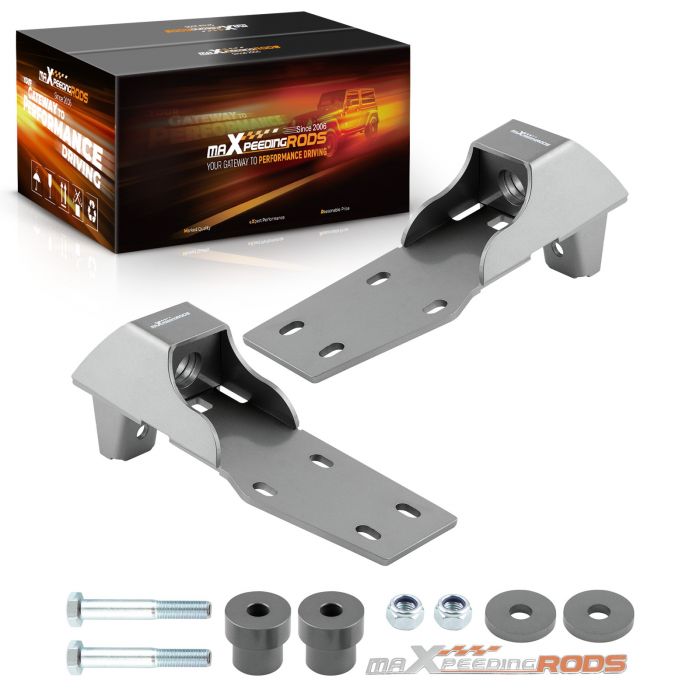

Package Includes:

2x Drop Boxes (R and L)
2x Bolts

Notice:
• Hi-performance aftermarket parts; no instruction included; professional installation is suggested.
• Please feel free to contact us for whatever we can help.

Warranty: one year warranty for any manufacturing defect
