T04E T3/T4 .63 AR 50 Trim Turbo/TurboCharger + 1-30 PSI Boost Controller

SKU

3002037232

Skip to the beginning of the images gallery

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.

Application

for 2.5L and up engines\
for 3.2L-5.0L engines in twin-turbo application, capable to 800HP

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns\
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern\
Cooling Type: Oil Cooled\
Wastegate: External Wastegate\
Horse Power: Boost Horse Power up to 300+HP\
\
Compressor: \
Trim: 55 \
Inducer Diameter: 50.5 mm \
Exducer Diameter: 76 mm\
A/R: 0.5\
\
Turbine \
Trim: 73\
Inducer Diameter: 65.5 mm\
Exducer Diameter: 55.9 mm \
A/R: 0.63\
\
Turbo Boost Controller:\
Allows adjustable boost psi settings, light weight design to be mount under the hood. Hardware is included\
Adjustable boost knob increases horsepower and torque, depends on boost level.\
Universal fitment and great for all Turbo applications\
CNC Machined Aluminum Body\
1-30 PSI Adjustable\
\
Condition: 100% Brand New \
Bearing Type: Floating Bearing\
Warranty: one year warranty for any manufacturing defect\

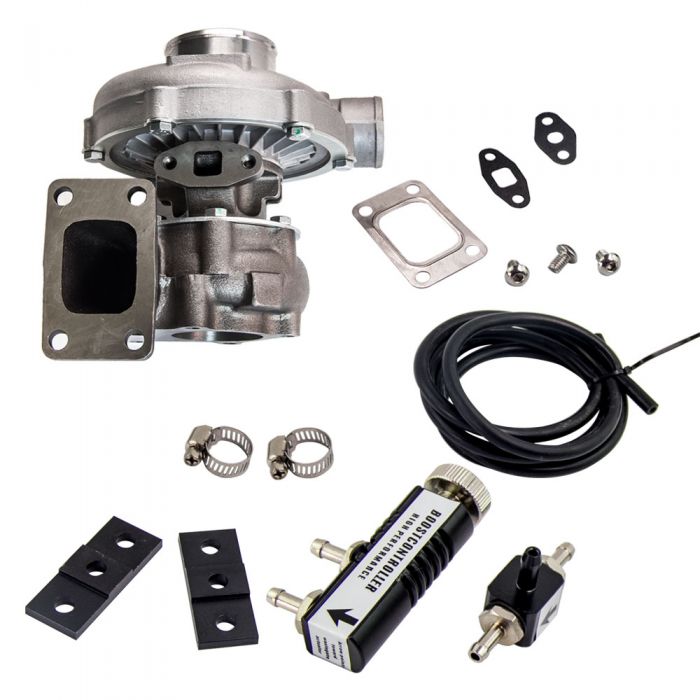

Package Includes:\
1 x Turbocharger Kit\
1 x Turbo Boost Controller Kit\
(You will get exactly as shown in the picture above)\

Note

* Please check our store for other auto parts you may be interested in.\
* Please check the specifications carefully before bidding. If you are not sure about these information,\
please feel free to contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
