T04E Turbo + Oil Line + Manifold Kit compatible for Nissan Patrol Safari Y60 Y61 TD42 TB42

SKU

3002105374

Skip to the beginning of the images gallery

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.

Application

for 2.5L and up engines\
for 3.2L-5.0L engines in twin turbo application, capable to 800HP

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns\
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern\
Cooling Type: Oil Cooled\
Wastegate: External Wastegate\
Horse Power: Boost Horse Power up to 400+HP\
Maximum 18PSI
\
Compressor: \
Trim: 55 \
Inducer Diameter: 50.5 mm \
Exducer Diameter: 76 mm\
A/R: 0.5\
\
Turbine \
Trim: 73\
Inducer Diameter: 65.5 mm\
Exducer Diameter: 55.9 mm \
A/R: 0.63\
\
Oil Specifications:\
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm\
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm\
\
Manifold Specifications:\
Material: Cast Iron\
Mounted type: Top mounted / High mounted\
Turbo Flange: T3\
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)\
\
Condition: 100% Brand New \
Bearing Type: Floating Bearing\
Warranty: one year warranty for any manufacturing defect\

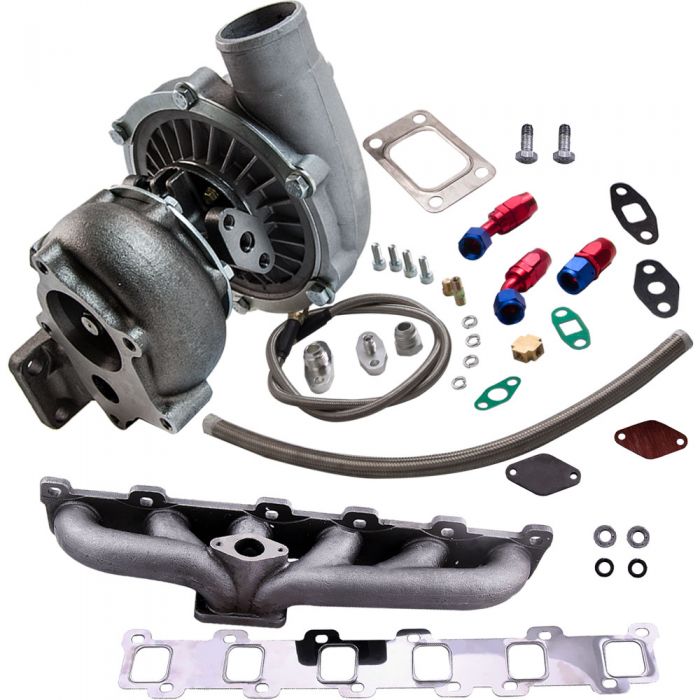

Package Includes:\
1 x Turbocharger Kit\
1 x Braided Turbo Oil Feed Line\
1 x Braided Turbo Oil Return Line\
1 x Manifold\
(You will get exactly as shown in the picture above)\

Note

- Please check our store for other auto parts you may be interested in.\
- Please check the specifications carefully before bidding. If you are not sure about these information,\
please feel free to contact us.
