Air to Coil Spring Strut Suspension Conversion kit compatible for Lincoln Navigator 2003-06

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Ford Expedition 2003 - 2006 All Models
\ Compatible for Lincoln Navigator 2003 - 2006 All Models

Specification

Top mounts:pillow ball top mount front and rear
\ Damping: No adjustable damper force
\ Front Spring Rate: 18 kg/mm (1008 in/lbs)
\ Rear Spring Rate: 10 kg/mm (560 in/lbs)
\ Adjustable Height: Yes lowering 1" to 3"
\ Shock type: Twin tube
\ Spring Preload: 7-10 mm
\ Color: red

Package included

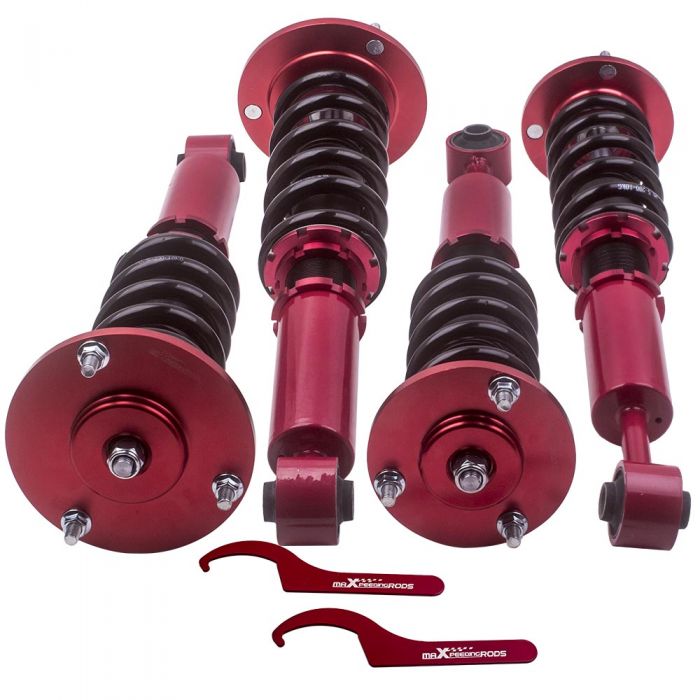

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 30.68kg
\ Package size: 71*51*21cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2.Pillow ball top mount - It improves the steering feel and response.
\ 3. Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 5. Separate height adjustment does not affect damper stroke.
\ 6. Height can be adjusted with coilovers installed on the vehicle.
\ 7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 8. Height Adjustment tools included.
\ 9. Full rebuildable.
