Maxpeedingrods Coilovers for BMW E36 3 Series 316 318 323 325 328 M3 Coilover Struts Shock

SKU

3002103734

Skip to the beginning of the images gallery

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)
\ Compatible for BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 325i; 328i
\ (09/1991-04/1999)
\ Compatible for BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)
\ Compatible for BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

Specification

Top mounts: pillow ball top mounts with camber plate
\ Damping: not available
\ Spring rate Front: 8 kg/mm (448 lbs/in)
\ Spring rate Rear: 7 kg/mm (392 lbs/in)
\ Spring length Front: 180mm
\ Spring length Rear: 183mm
\ Adjustable height: lowering 1-3inch
\ Coilover overall length Front: 560mm-683mm
\ Coilover overall length Rear: 450mm-535mm
\ Shock type: Twin tube
\ Spring Preload: 7-10 mm
\ Color: blue

Package included

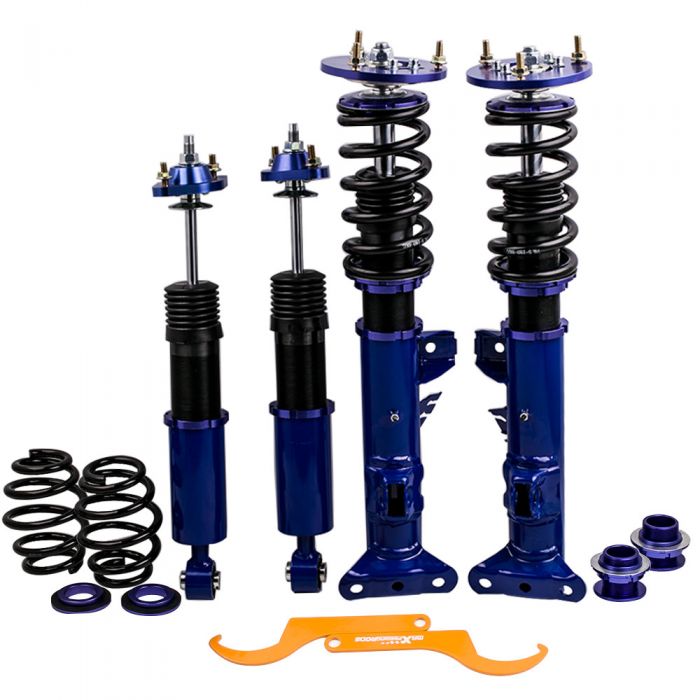

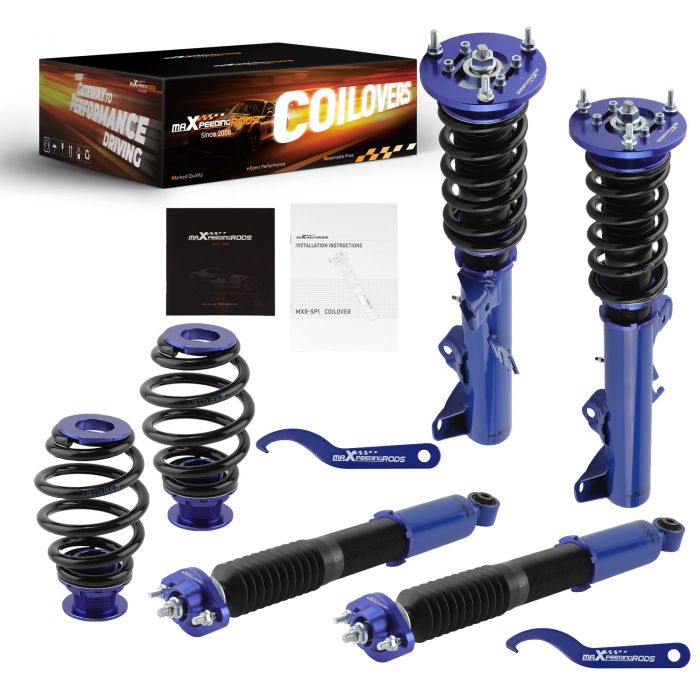

product included: complete coilovers 2 front and 2 rear
\ a pair wrench for height adjustment

Dimension

weight: 27040g
\ size: 71*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
\ 2. Twin-Tube structure allows sufficient stroke within the shock absorber
\ 3. Separate height adjustment does not affect damper stroke
\ 4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 5. Height Adjustment tools included
\ 6. Camber plate top mounts help to eliminate the need for a separate camber kit
\ 7. Pillow ball top mount - It improves the steering feel and response
\ 8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 9. Full rebuildable
