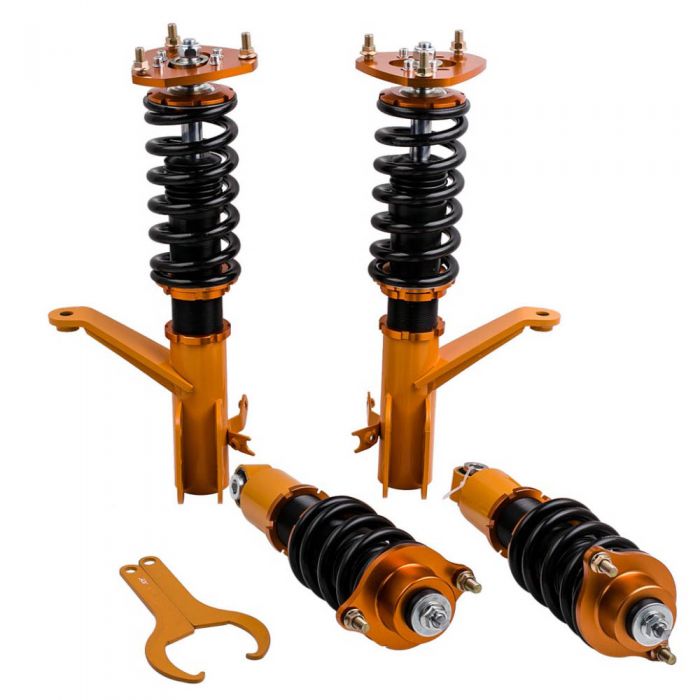

Assembly Coilover Kits compatible for Honda Element 2003-2011 Adj. Height Shock Absorbers

SKU
3002102809

Register and log in to view the price.

Assembly Coilover Kits compatible for Honda Element 2003-2011 Adj. Height Shock Absorbers
CO-HONELE-0313-G-NA-VG2
CO-HONELE-0313-G-NA-VG2
1. Adjustable Height
1. Adjustable Height
Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel
2. High Quality Components
2. High Quality Components
Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response
3.Hi-Tensile Performance Spring
3.Hi-Tensile Performance Spring
Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved
4.Twin-tube Constructioneal
4.Twin-tube Constructioneal
Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for HONDA ELEMENT 2003-2006 USA YH1 \
compatible for HONDA ELEMENT 2003-2006 USA YH2 4WD\
compatible for HONDA ELEMENT 2007-2011 USA YH1\
compatible for HONDA ELEMENT 2007-2011 YH2 4WD

Specification

Top mount: Front camber plate;rear rubber top mount\
Damping: not available\
Spring rate Front: 9kg/mm (504 lbs/in)\
Spring rate Rear: 8kg/mm (448 lbs/in)\
Adjustable height: lowering 1-3 inch\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold body with black spring

Package included

Complete coilover assembly kit for front and rear\
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21 \
Weight: 24480g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Camber plate top mounts help to eliminate the need for a separate camber kit.\
3.Twin-Tube structure allows sufficient stroke within the shock absorber.\
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.\
6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.\
8.Steel shock bodies with special surface treatment to improve the durability. \
9.Full rebuildable
