Coilover Kits compatible for Infiniti M35 X Sedan 4-Door 3.5L 2007 Adj. Damper

SKU

3002116292

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Application

Compatible for Infiniti M35x 06-10 AWD\
compatible for Infiniti M45x 06-10 AWD\
compatible for Infiniti G35x 03-08 AWD\
compatible for Infiniti G37x 08-13 AWD\
Note: Will not fit RWD model；Rear true coilover

Specification

Top mounts: standard rubber top mount front and rear\
Damping: 24 levels rebound damping adjustable\
Spring rate Front: 12 kg/mm (672 lbs/in)\
Spring rate Rear: 10 kg/mm (560 lbs/in)\
Spring length Front: 160mm\
Spring length Rear: 200mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 340mm-410mm\
Coilover overall length Rear: 500mm-590mm\
Shock type: Twin tube\
Color: gold

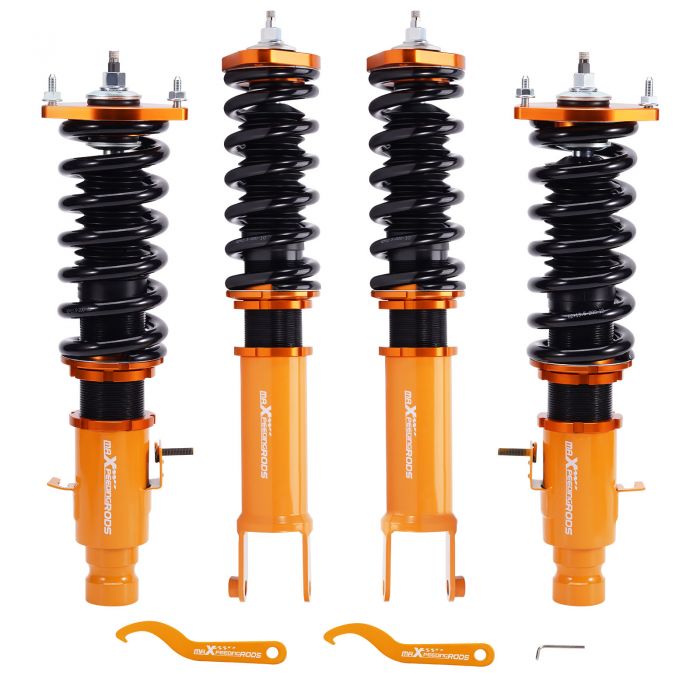

Package included

complete coilovers 2 front and 2 rear\
a pair wrench for height adjustment

Dimension

weight: 21620g\
size: 63*51*21 cm

Feature

1. Twin-Tube structure allows sufficient stroke within the shock absorber.\
2. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.\
3. Height Adjustment tools included.\
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
5. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.\
6. Separate height adjustment does not affect damper stroke.\
7. Full rebuildable. \
8. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance\
9. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
