Coilover Suspension Kit compatible for Mazda 3 2004-2009 2010-2013 24 Ways Damper Force

SKU
3002104560

Register and log in to view the price.

Coilover Suspension Kit compatible for Mazda 3 2004-2009 2010-2013 24 Ways Damper Force

Introduction

A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened - lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper and a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket adjustable coilovers suspension kit compatible for Mazda series. You can enjoy a comfortable riding experience in all road conditions.

Application

Compatible for Mazda 3 BK 2004-2009
Compatible for Mazda 3 BL 2009-2013
( Includes  Mazdaspeed 3)

Specification

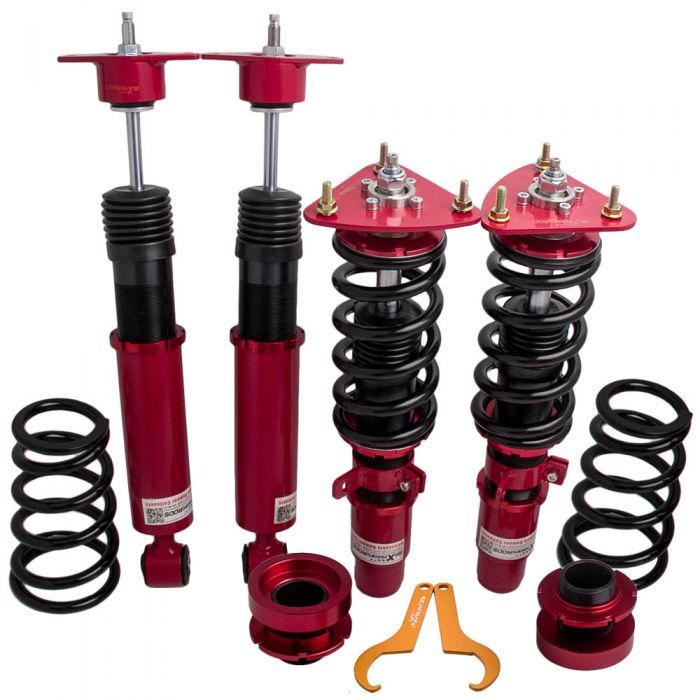

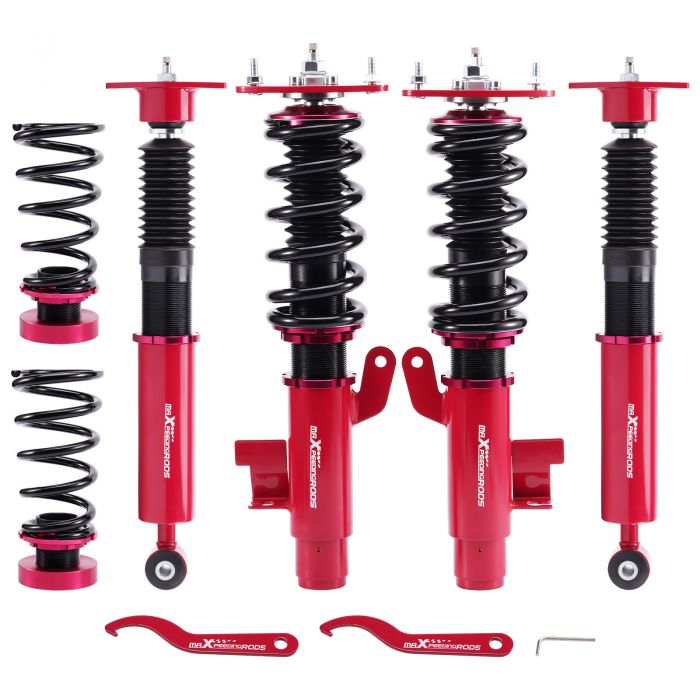

Product included: Complete coilovers 2 front and 2 rear as shown in the picture

Dampening: 24 levels rebound dampening adjustable

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring Preload: 7-10 mm

Shock type:Twin tube

Color:Red

We also have other colors

Daily Driving Scene To The Sunday Track

Warranty: one year

Features

- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.

- Coilovers are 24-way adjustable. Rebound and Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.

- Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel and response.

- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency and keep shock temps low.

- Height adjustment does not sacrifice damper stroke length.

- These coilovers are able to have their height adjusted without being taken out of the car.

- Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity.

- High Tensile strength performance spring---Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability and performance.

- Adjustment tools included in the kit.

Notice

-No instruction included; Professional installation & alignment suggested.

-Please check our store for other auto parts you may be interested in.

-Please feel free to contact us for whatever we can help.
