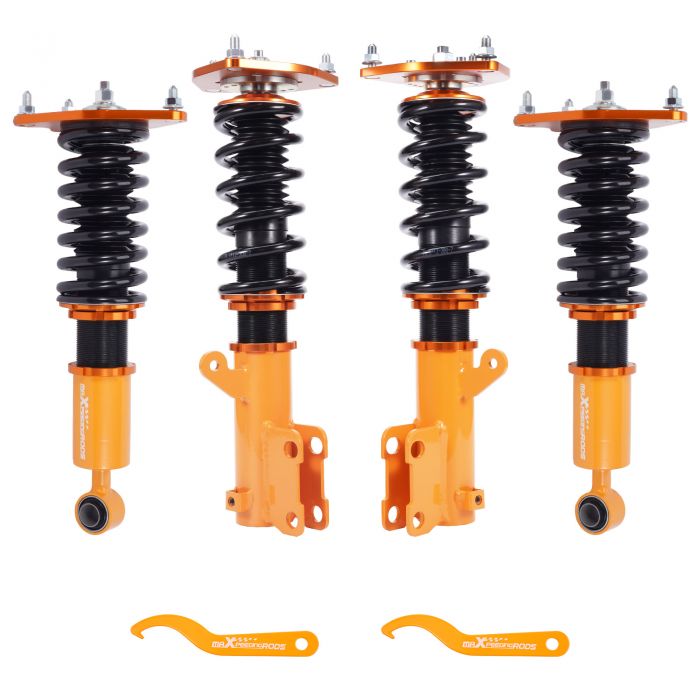

Complete Coilovers Set compatible for Mitsubishi Eclipse 4G 2006-2012 Galant DJ 2004-2012 Shocks

SKU
3002103747

Register and log in to view the price.

Complete Coilovers Set compatible for Mitsubishi Eclipse 4G 2006-2012 Galant DJ 2004-2012 Shocks

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mitsubishi Eclipse IV 2006–2012 (DK2A/DK4A)
\ Compatible for Mitsubishi Galant (DJ) 2004-2012

Specification

Top mounts: front camber plate
\ rear rubber top mount
\ Damping: not available
\ Spring rate: front 7 kg/mm (392 lbs/in) rear 6 kg/mm (336 lbs/in)
\ Adjustable height: Yes lowering 1" to 3"
\ shock type: Twin tube
\ spring Preload: 7-10 mm
\ color: gold body with black spring

Package included

Package included: complete coilover assemblies 2 front and 2 rear
\ a pair of wrench for height adjustment

Dimension

Package dimension : 63*51*20
\ Weight: 23900g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2.Camber plate top mounts help to eliminate the need for a separate camber kit.
\ 3.Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
\ 6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 8.Steel shock bodies with special surface treatment to improve the durability.
\ 9.Full rebuildable
