Coilover Spring Shock Compatible ForToyota Corolla E90 1988-1999 24 ways damping adjustable Maxpeedingrods Coilover

SKU
3002203662

Register and log in to view the price.

Coilover Spring Shock Compatible ForToyota Corolla E90 1988-1999 24 ways damping adjustable Maxpeedingrods Coilover

Application

For Toyota Corolla E90 E100 E110 AE92 AE101 AE111 1988-1999


Specification

Front Top Mount: pillow ball with camber plate Rear top mount: pillow ball

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Adjustable height: lowering 1-3 inch

Shock Type: Twin tube

Spring Preload: 7-10 mm

Color: black body with blue spring

Package included

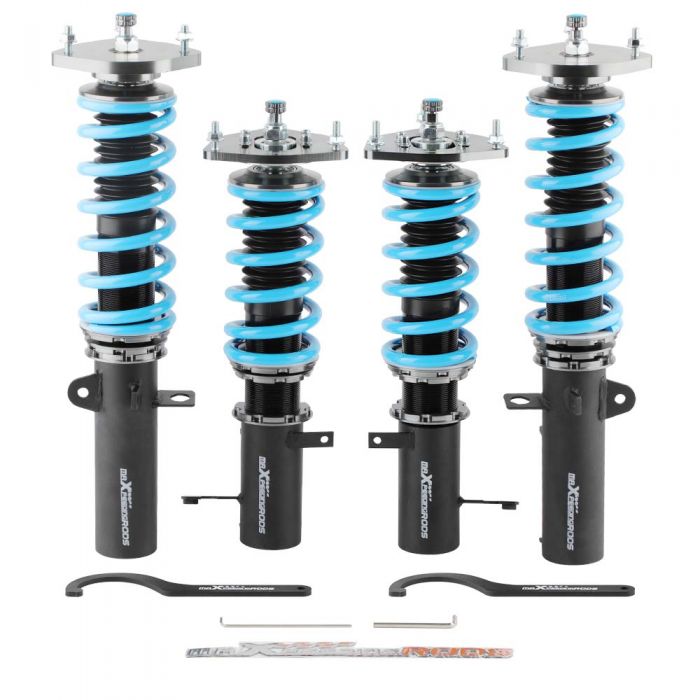

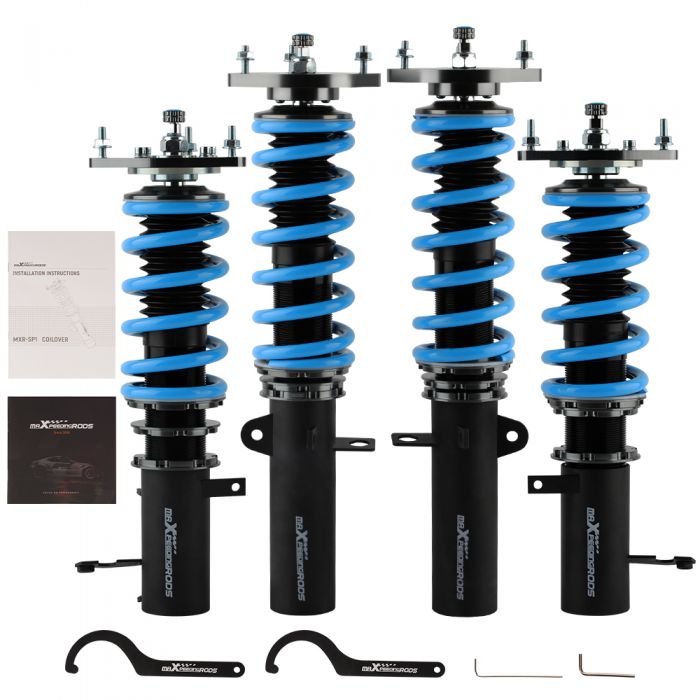

Complete Coilover assembly kit for front and rear

A pair wrench for height adjustment


Dimension

Package dimension : 63*51*21

Weight: 27300g


Feature

1. Lowered height adjustment from 1" - 3" which allow a lower centre of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your Coilover setup. You will experience better ride quality in all road conditions.

3. Pillow ball top mounts improve the steering feel and response.

4. Full-length dust boot keeps shaft and oil seal from damage.

5. Upgraded damper adjust knob makes damping setting easier.

6. Upgraded valving for a more smooth ride.

7. Twin-Tube structure allows sufficient stroke within the shock absorber.

8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.

10. Decent appearance benefits from CNC machined parts and special surface treatment.

11. Most pieces in our Coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust-resistant components.

12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

14. All coilovers were produced and assembled at the dust-free factory which guaranteed the highest quality.

15. Camber plate top mounts help to eliminate the need for a separate camber kit.
