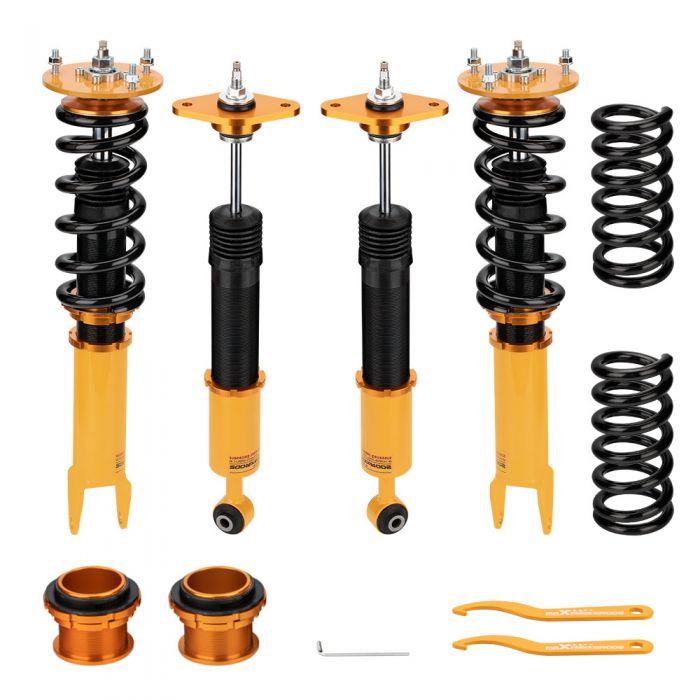

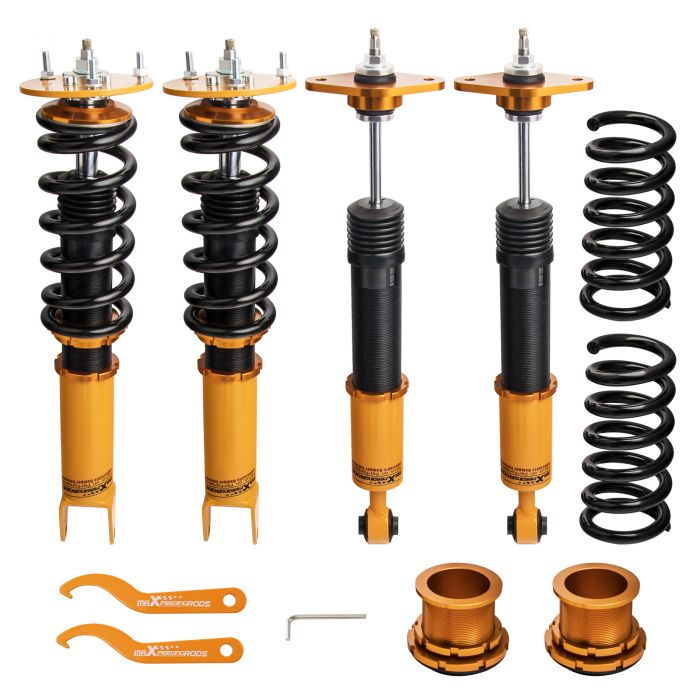

Coilover Suspension Kits compatible for Dodge Charger 06-10 and compatible for SRT-8 Adj. Damper Coil Spring

SKU

3002106300

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions.

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring锛

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4.Twin-tube Construction eal

Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance
Dust boot protects dampers

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Dodge Magnum R/T 锛孲RT8 RWD Wagon 2005-2008\
compatible for CHRYSLER 300C /300 C SRT8 ( (LX, LE) RWD Sedan 2005-2010

Specification

Top mounts: front - pillow ball top mounts\
rear 鈥 rubber top mounts\
Damping: 24 levels rebound damping adjustable \
Spring rate Front: 12 kg/mm (672 lbs/in)\
Spring rate Rear: 14 kg/mm (784 lbs/in)\
Spring length Front: 230mm\
Spring length Rear: 240mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 510mm-600mm\
Coilover overall length Rear: 570mm-630mm\
Shock type: Twin tube\
Spring preload: 7-10 mm\
Color: gold

Package included

complete coilovers for 2 front and 2 rear\
a pair wrench for height adjustment

Dimension

weight: 30800g\
size: 71*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.\
3. Twin-Tube structure allows sufficient stroke within the shock absorber.\
4. Separate height adjustment does not affect damper stroke.\
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.\
6. Height Adjustment tools included.\
7. Pillow ball top mount - It improves the steering feel and response.\
8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. \
9. Full rebuildable.
