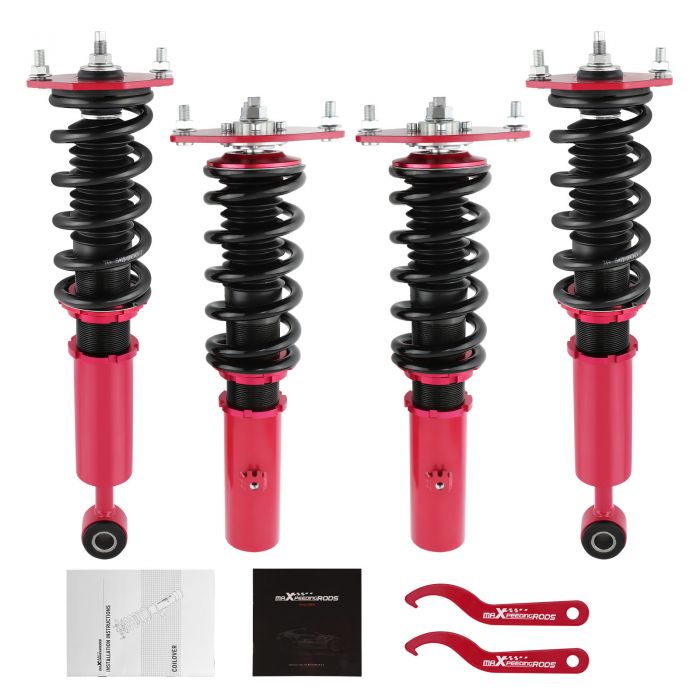

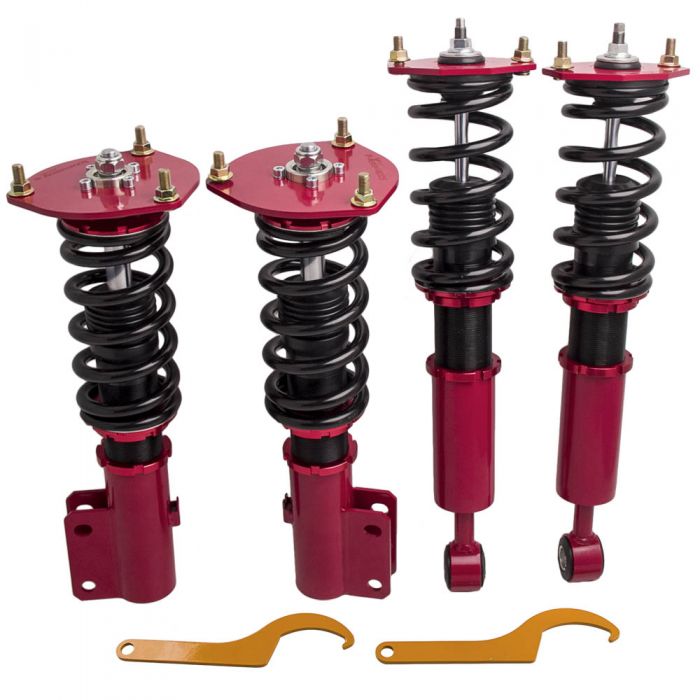

Coilover shock absorber for Mitsubishi 3000GT VR-4 AWD 1991-1999 for Dodge Stealth AWD 1991-1996

SKU

3002103746

Skip to the beginning of the images gallery

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for MITSUBISHI GTO 1990.10-2000.07 JPN 3000 4WD (AWD) Z16A TWIN TURBO
\ Compatible for MITSUBISHI GTO 1993.08-2000.07 JPN 3000 4WD (AWD) Z15A TWIN TURBO MR, SR
\ Compatible for MITSUBISHI 3000GT 1991-1999 USA 4WD (AWD/VR-4) Coupe Z16A V6 turbo
\ Compatible for Dodge Stealth 1991–1996 4WD (AWD)

Specification

Top mounts: front pillow ball top mounts
\ rear rubber top mounts
\ Damping: not available
\ Spring rate: front 10kg/mm rear 7kg/mm
\ Adjustable height: Yes lowering 1" to 3"
\ Shock type: Twin tube
\ Spring Preload: 7-10 mm
\ Color: red

Package included

complete coilovers 2 front and 2 rear
\ a pair wrench for height adjustment

Dimension

weight: 26760g
\ size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
\ 2. Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 3. Separate height adjustment does not affect damper stroke.
\ 4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
\ 5. Height Adjustment tools included.
\ 6. Pillow ball top mount - It improves the steering feel and response.
\ 7. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 8. Full rebuildable.
