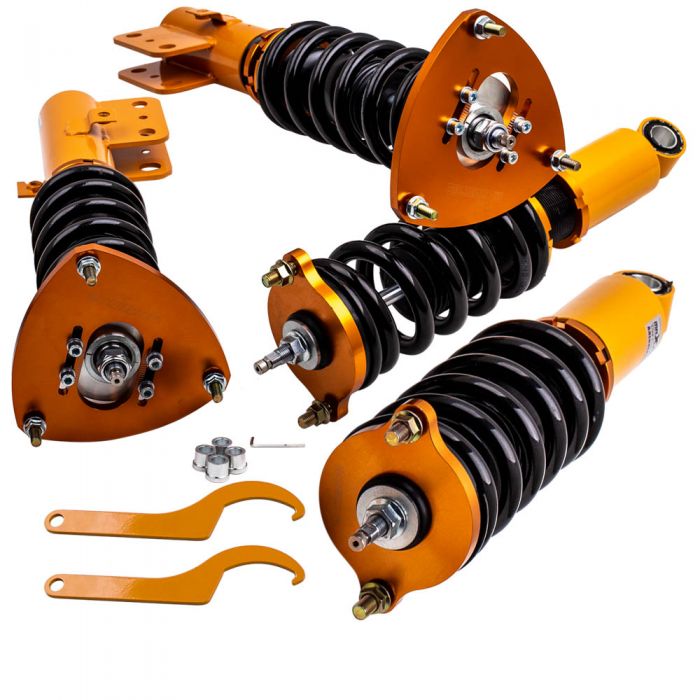

Coilover Suspension Kits compatible for Subaru Legacy 05-09 BL BP Adjustable Damper Shocks

SKU

3002104326

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions.

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring：

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4.Twin-tube Construction eal

Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance
Dust boot protects dampers

Application

Compatible for Subaru Legacy 2005-2009 (USA) BL9 BP9\
compatible for Subaru Legacy B4 2003.05-2009.04JPN BLE BL5\
compatible for Subaru Legacy TOURING WAGON 2003.05-2009.04JPN BP5 BPE

Specification

Top mounts: Front pillow ball top mount with camber plate\
Damping: 24 levels rebound damping adjustable\
Adjustable camber plate: Front only\
Spring rate Front: 7 kg/mm (392 lbs/in)\
Spring rate Rear: 12 kg/mm (672 lbs/in)\
Spring length Front: 200mm\
Spring length Rear: 190mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 460mm-550mm\
Coilover overall length Rear: 400mm-450mm\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: Gold

Package included

Complete coilover assembly kit for front and rear\
A pair wrench for height adjustment

Dimension

Size: 63*51*21 cm\
Weight: 24.92 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.\
Camber plate top mounts help to eliminate the need for a separate camber kit.\
Pillow ball top mount - It improves the steering feel and response.\
Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
Twin-Tube structure allows sufficient stroke within the shock absorber.\
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
Separate height adjustment does not affect damper stroke.\
Height can be adjusted with coilovers installed on the vehicle.\
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
Height Adjustment tools included.\
Full rebuildable.
