Maxpeedingrods Shock Absorbers Front and Rear Coilover Suspension Kit compatible for Honda Civic 1989-2000

SKU

3002033055

Skip to the beginning of the images gallery

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for HONDA CIVIC 1989-1991 ED2 ED3 ED4 ED6 ED7 EC8 EE9 Rear FORK TYPE BRACKET MODEL ONLY
\ Compatible for HONDA CRX 1989-1991 ED8 ED9 EE8 Rear FORK TYPE BRACKET MODEL ONLY
\ Compatible for HONDA CIVIC 1992-1995 EG1 EG2 EG3 EG4 EG5 EG6 EG8 EG9 EJ1 EJ2 EH2 EH3 EH9 Rear FORK TYPE BRACKET MODEL ONLY
\ Compatible for HONDA CIVIC 1995-2000 EK2 EK3 EK4 EJ6 EJ7 EJ8 EM1 Rear FORK TYPE BRACKET MODEL ONLY
\ Compatible for HONDA DELSOL 1993-1997 EG1 Rear FORK TYPE BRACKET MODEL ONLY
\ Compatible for ACURA INTEGRA 1994-2001 DC2 DC4 Rear FORK TYPE BRACKET MODEL ONLY

Specification

Frant and Rear top mount: rubber
\ Spring rate Front: 8 kg/mm (448 lbs/in)
\ Spring rate Rear: 5 kg/mm (280 lbs/in)
\ Spring length Front: 180mm
\ Spring length Rear: 180mm
\ Adjustable height: lowering 1-3inch
\ Coilover overall length Front: 365mm-410mm
\ Coilover overall length Rear: 435mm-480m
\ Shock type: Twin tube
\ Spring Preload: 7-10 mm
\ Color: blue body with black spring

Package included

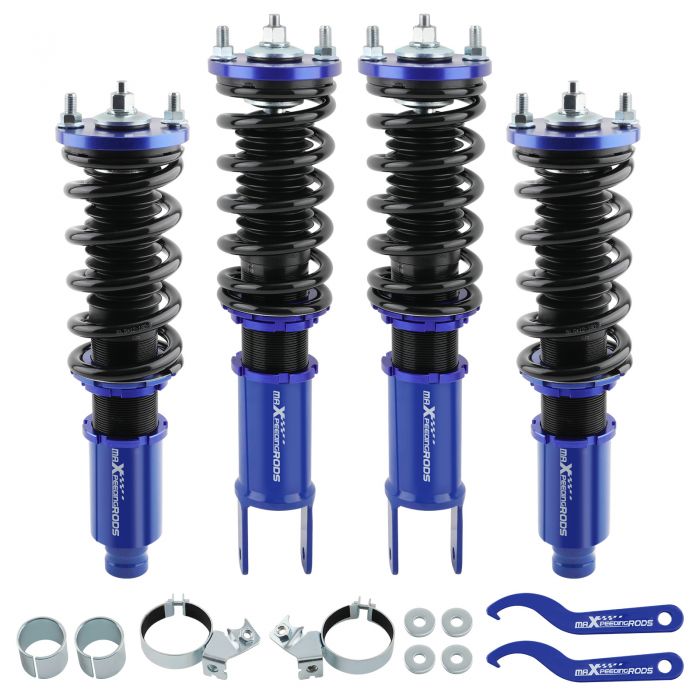

Complete coilovers assembly 2 front and 2 rear
\ A pair wrench for height adjustment

Dimension

Package dimension : 71*51*21
\ Weight: 22260g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
\ 2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
\ 3. Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 5. Separate height adjustment does not affect damper stroke.
\ 6. Height can be adjusted with coilovers installed on the vehicle.
\ 7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 8. Height Adjustment tools included.
\ 9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 10. Steel shock bodies with special surface treatment to improve the durability.
\ 11. Full rebuildable.

Note

For some vehicles, you will need sleeves and
\ washers that already included in our package.
