Coilovers Kit compatible for Hyundai Tiburon GS Coupe 2-Door 2005-2008 Adj. Damper Shocks

SKU

3002102173

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Hyundai Tiburon 2nd. Gen 2003-2008 US Model\
compatible for Hyundai Coupe 2002–2009 (Europe and Middle East)\
Compatible for Hyundai Tuscani 2003-2008 (South Korean)

Specification

Top mounts: Front OE top mounts required \
Damping: 24 levels rebound damping adjustable\
Spring rate Front: 7 kg/mm(392 lbs/in)\
Spring rate Rear: 6 kg/mm(336 lbs/in)\
Adjustable camber plate: No\
Adjustable height: Yes lowering 1" to 3"\
Shock type: Twin tube\
Spring preload: 7-10 mm\
Color: Gold

Package included

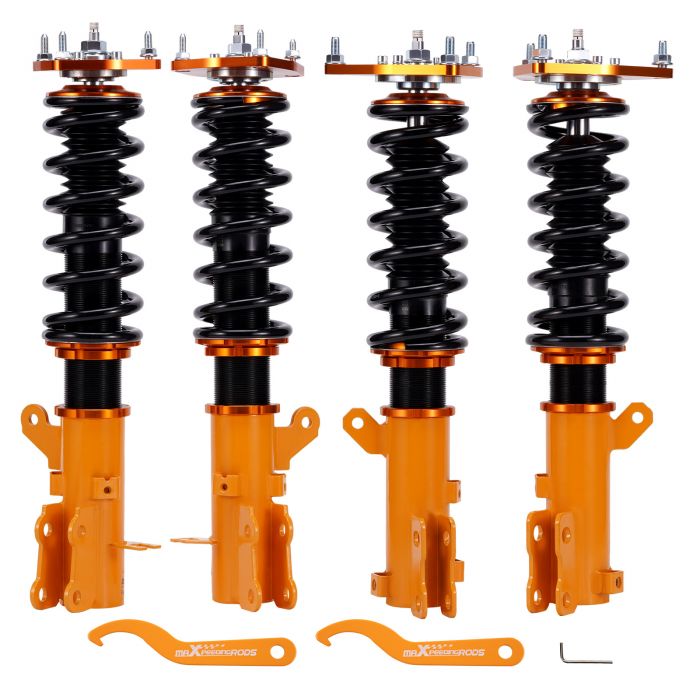

product included: 2 piece front + 2 pieces rear as pictures show

Dimension

Size: 63*51*21 cm\
Weight: 25.88 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.\
Twin-Tube structure allows sufficient stroke within the shock absorber.\
Separate height adjustment does not affect damper stroke.\
Height can be adjusted with coilovers installed on the vehicle.\
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
Height Adjustment tools included.\
Pillow ball top mount - It improves the steering feel and response.\
Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. \
Full rebuildable.
