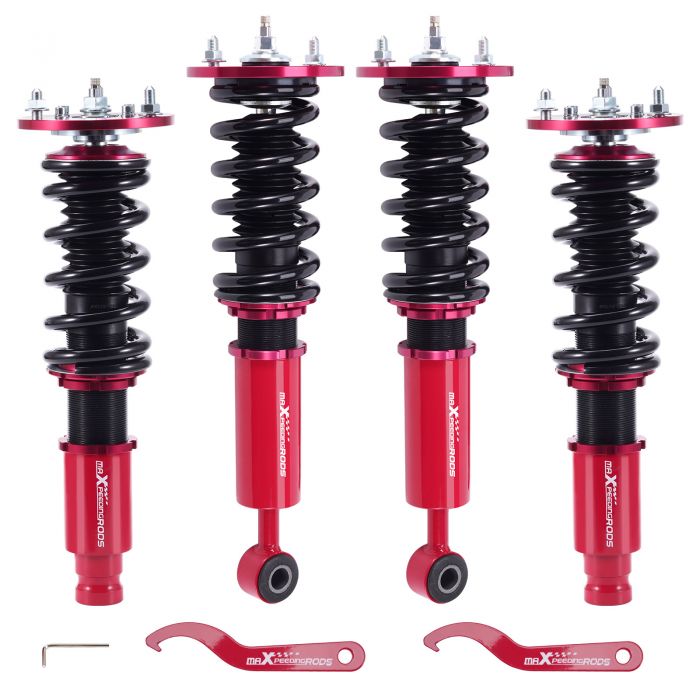

Coilovers Kits compatible for Mitsubishi Eclipse 95-99 2ND Gen Adj Damper 24 Levels Red

SKU
3002102164

Register and log in to view the price.

Coilovers Kits compatible for Mitsubishi Eclipse 95-99 2ND Gen Adj Damper 24 Levels Red

Application

Compatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
\ Compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
\ Compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
\ Compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A 4CYL/NON TURBO

Specification

Top mount: front camber plate; rear rubber
\ Damping: 24 levels rebound damping adjustable
\ Front Spring Rate: 12kg/mm (672 lbs/in)
\ Rear Spring Rate: 9kg/mm (504lbs/in)
\ Spring length Front: 190mm
\ Spring length Rear: 190mm
\ Coilover overall length Front: 445mm-495mm
\ Coilover overall length Rear: 485mm-575mm
\ Adjustable height: Yes lowering 1" to 3"
\ Spring Preload: 7-10 mm
\ Shock type:Twin tube
\ Color: red body with black spring

Package included

Complete coilovers assembly 2 front and 2 rear
\ A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
\ Weight: 25260g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
\ 3.Camber plate top mounts help to eliminate the need for a separate camber kit.
\ 4.Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
\ 7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 9.Steel shock bodies with special surface treatment to improve the durability.
\ 10. Full rebuildable
