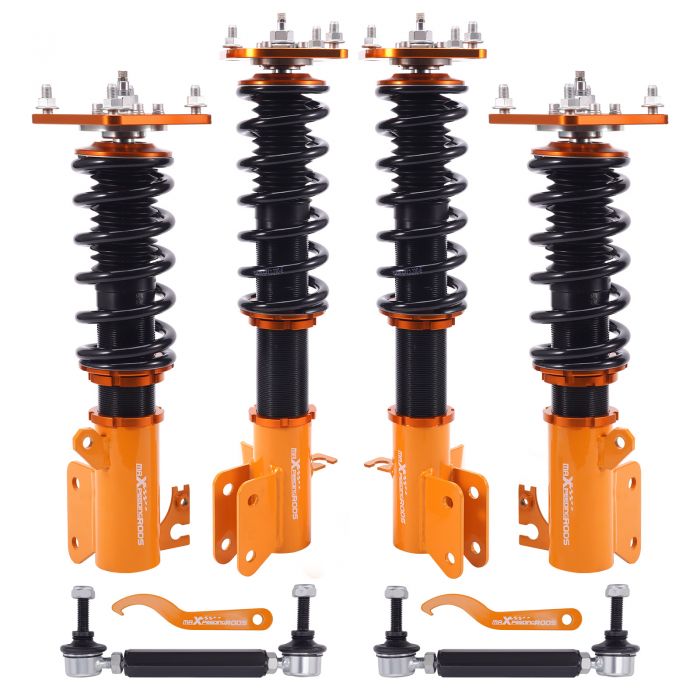

Compatible for Mazda Protege 323 BJ 1999-2003 Adj Damper Coilovers Suspension Lowering Kit
Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Application
Compatible for Mazda 323 1999-2003
\
Compatible for Mazda Protegé 1999-2003
\
Compatible for Mazda Protegé5 1999-2003
\
Compatible for Mazdaspeed Protegé 1999-2003
\
Compatible for Mazda Isamu Genki (Taiwan) 1999-2003
\
Compatible for Mazda Allegro 1999-2003
\
Compatible for Ford Activa 1999-2003
\
Compatible for Ford Laser (KN/KQ) 1999-2003
\
Compatible for Ford Tierra 1999-2003
\
for Haima Family (China) 1999-2003
\
for Haima Happin (China) 1999-2003
Specification
Top mounts: front pillow ball top mount with camber plate
\
rear pillow ball top mount
\
Damping: 24 levels rebound damping adjustable
\
Spring rate Rear: 6 kg/mm (336 lbs/in)
\
Spring length Front: 200mm
\
Spring length Rear: 230mm
\
Adjustable height: lowering 1-3 inch
\
Coilover overall length Front: 420mm-520mm
\
Coilover overall length Rear: 520mm-620mm
\
Shock type: Twin tube
\
Spring Preload: 7-10 mm
\
Color: gold
Package included
complete coilovers 2 front and 2 rear
\
a pair wrench for height adjustment
Dimension
weight: 30060g
\
size: 63*50*20 cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
\
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
\
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
\
4. Separate height adjustment does not affect damper stroke.
\
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
\
6. Height Adjustment tools included.
\
7. Camber plate top mounts help to eliminate the need for a separate camber kit.
\
8. Pillow ball top mount - It improves the steering feel and response.
\
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\
10. Full rebuildable.
