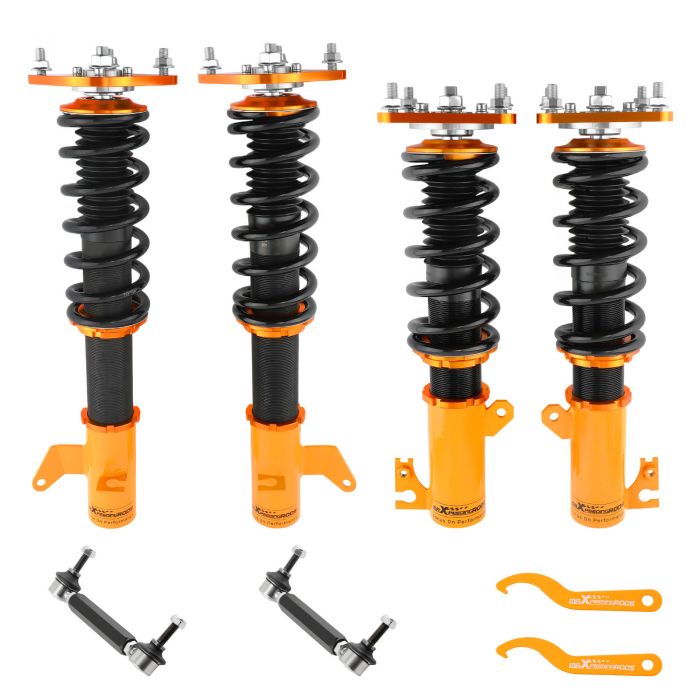

Coilover Coilovers Kit compatible for Mazda 323 Astina Protege BJ Hatchback Sedan 1999-2003

SKU

3002103743

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mazda 323 1999-2003\
compatible for Mazda Protegé 1999-2003\
compatible for Mazda Protegé5 1999-2003\
compatible for Mazdaspeed Protegé 1999-2003\
compatible for Mazda Isamu Genki (Taiwan) 1999-2003\
compatible for Mazda Allegro 1999-2003\
compatible for Ford Activa 1999-2003\
compatible for Ford Laser (KN/KQ) 1999-2003\
compatible for Ford Tierra 1999-2003\
for Haima Family (China) 1999-2003\
for Haima Happin (China) 1999-2003

Specification

Top mounts: front pillow ball top mount with camber plate\
rear pillow ball top mount\
Damping: not available\
Spring rate Front: 7 kg/mm (392 lbs/in)\
Spring rate Rear: 6 kg/mm (336 lbs/in)\
Spring length Front: 200mm\
Spring length Rear: 230mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 420mm-520mm\
Coilover overall length Rear: 520mm-620mm\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold

Package included

complete coilovers 2 front and 2 rear \
a pair wrench for height adjustment

Dimension

weight: 31000g\
size: 63*52*22 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
2. Twin-Tube structure allows sufficient stroke within the shock absorber.\
3. Separate height adjustment does not affect damper stroke.\
4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.\
5. Height Adjustment tools included.\
6. Camber plate top mounts help to eliminate the need for a separate camber kit.\
7. Pillow ball top mount - It improves the steering feel and response.\
8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.\
9. Full rebuildable.
