Compatible for BMW E36 328i / 328is i6 1994-1999 Turbo kits Wet Float Bearing
SKU
3002905849
Compatible for BMW E36 328i / 328is i6 1994-1999 Turbo kits Wet Float Bearing
Application:
Compatible for BMW E36 325i / 325is i6 1991-1995
Compatible for BMW E36 328i / 328is i6 1994-1999
Compatible for BMW E36 323i i6 1995-1999
Compatible for BMW E36 M3 i6 1992-1999
Compatible for BMW E46 323i / 323is / 323Ci / 323Ti i6 1997-2000
Compatible for BMW E46 328i / 328Ci i6 1998-2000
Compatible for BMW E46 325i / 325Ci / 325Xi / 325Ti i6 2001-2007
Compatible for BMW E46 330i / 330Ci / 330Xi i6 2000-2007
Specification:
1 x T3/T4 Turbo Charger:
Compressor Inlet Diameter: 72mm(2.8")
Compressor Outlet Diameter: 53mm(2")
Oil Inlet: 1/8 NPT
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing
Turbocharger Overall size: 270*220*220
1 x Intercooler:
*Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
*Support up to 350 hp for this small intercooler size - tube and fin style .
*Intercooler core size: 21*7*2.5
1 x Universal turbo intercooler piping kit:
2 x Straight Aluminum Pipe
2 x 45°Aluminum Pipe
2 x 75°Aluminum Pipe
2 x 90°Aluminum Pipe
6 x 2.5" Straight Silicon Hose (Blue)
2 x 2.5" 90 Degree Hose (Blue)
16 x 2.5" Stainless Steel T-Clamp
1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.
1 X BOV pipe: can install anywhere suitable
1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1 x Turbo Boost Controller: Up To 30 PSi Boost
1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.
Material: Stainless Steel Braided
1x 5 Blot Turbo Downpie: 2.5" t3/t4 5-bolt stainless steel TIG welded downpipe. down pipe length: 13“
Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. This provides a simple starter solution for connecting your turbo's exhaust to your existing exhaust system.
1x manifold: Standard T3/ T4 (T03/ T04) Turbo Flange Configuration Outlet.
Included Wastegate Flange for 35mm/38mm external WG.
1x INTAKE FILTER:
Width: 6" Inlet: 3.0" Overall Tall: 3.5" Mesh Tall: 2.5"

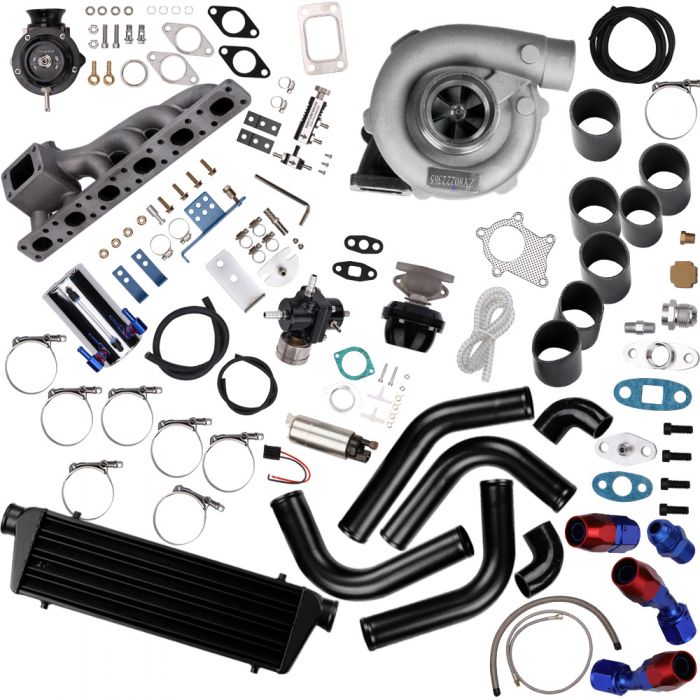

Package included:
1x T3/T4 Turbocharger
1x Oil Feed / Return Line
1x 35/38mm Wastegate
1x 5 Bolt Turbo Downpipe
1x Turbo Intercooler
1x Tubo Boost Controller
1x Type-S Blow Off Valve(Random Color)
1x BOV Adapter/pipe
1x Turbo Piping Kit
1x manifold
1x air filter
Feature:
1.Turbo charger:
* Capable of Boosting Horse Power up to 400+ HP
* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃
* Cast aluminium blades with good gas tightness and corrosion resistance.
2. Intercooler
* core size:21*7*2.5 cools down the turbocharged air efficiently
* Lightweight aluminum racing intercooler,
* Strong TIG welds will support high PSI levels
3.Boost controller
* Can be setup to adjust boost PSI on the fly
* Can be adjusted for any PSI level desired
* Control your boost with a precise click
* Includes complete install kit
* Anodized aluminum finish
* CNC machined design
4. Intercooler piping kit
* Made of 6061 aluminum
* Lightweight yet strong aluminum piping
* High pressure silicone couplers and T-bolt clamps
5. Turbo Oil returen /Feeding line kit
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the turbo charger to the oil pan.
* The kit provides a anodized look
* gives a best cooling performance on your turbo and long lasting life.
6.Blow Off Valve Kit
* CNC Billet Aluminum Type RS Style Blow off Valve
* Easy Mount Piping Set Included For Bolt-On.
* Including all necessary hardwares.
* easily adjustable to prevent both permature boost leakage and compressor surge.
* Fast response One For Low And High Boost Pressure.
* Performance design produces a powerful and aggressive sound
* Quality design will not leak under high boost conditions
* Flanges can be installed at user discretion
7. 38MM Wastegate
* Most reliable wastegates For competition vehicles.
* accurate boost control
* high quality appearance features Dual port design
* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
8. 5 Blot Turbo Downpie
* CNC machined surface
* Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.
9. BOV pipe/Adapter
* can install anywhere suitable
10.Turbo manifold
*Increase Engine Intercooler Output and Efficiency.
*Made of High Quality Cast Iron Material for Strength and Durability.
11.Air filter
*Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.
*Improves Up to 95% Filtration Efficiency.
*Designed to increase horsepower and acceleration.
Notice:
* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
* we will not be responsible for man-made installation damage.
