Coilovers Lowering Suspension Kit compatible for Toyota 86 GT86 compatible for Subaru BRZ 12+ FRS FR-S

SKU

3002102316

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

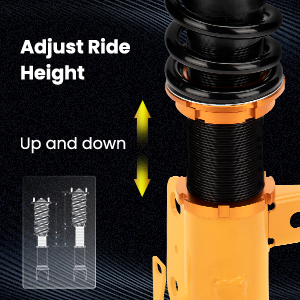

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions.

2. High Quality Components

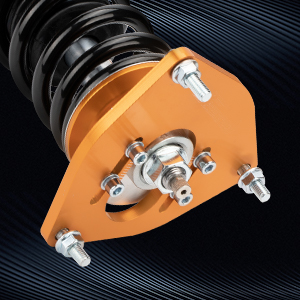

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness

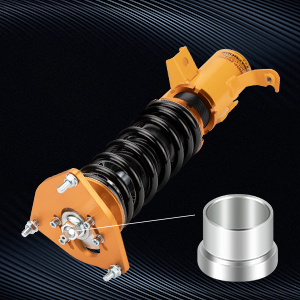

Pillow ball top mount is designed for improving Steering feel and response

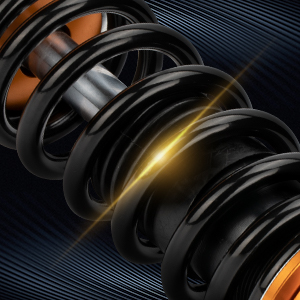

3.Hi-Tensile Performance Spring锛

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4.Twin-tube Construction eal

Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance
Dust boot protects dampers

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Subaru BRZ First generation (ZN6/ZC6) 2012-2020\
compatible for Scion FR-S 2012-2020\
compatible for Toyota 86 2012-2020

Specification

Top mounts: Front pillow ball top mount\
Damping: 24 levels rebound damping adjustable\
Shock type: Twin tube\
Adjustable height: Yes, lowering 1'' to 3''\
Adjustable camber plate: Yes\
Spring preload: 7-10 mm\
Spring rate Front: 6 kg/mm (336 lbs/in)\
Spring rate Rear: 5 kg/mm (280 lbs/in)\
Color: Golden

Package included

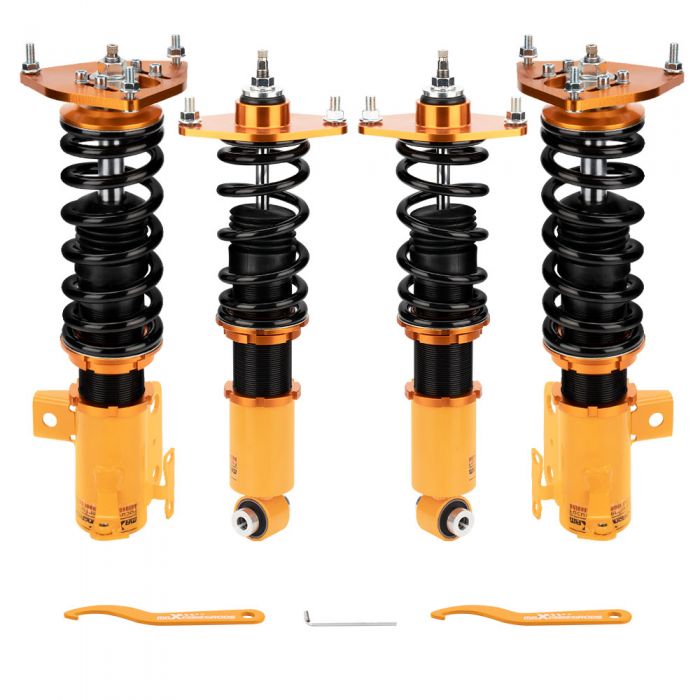

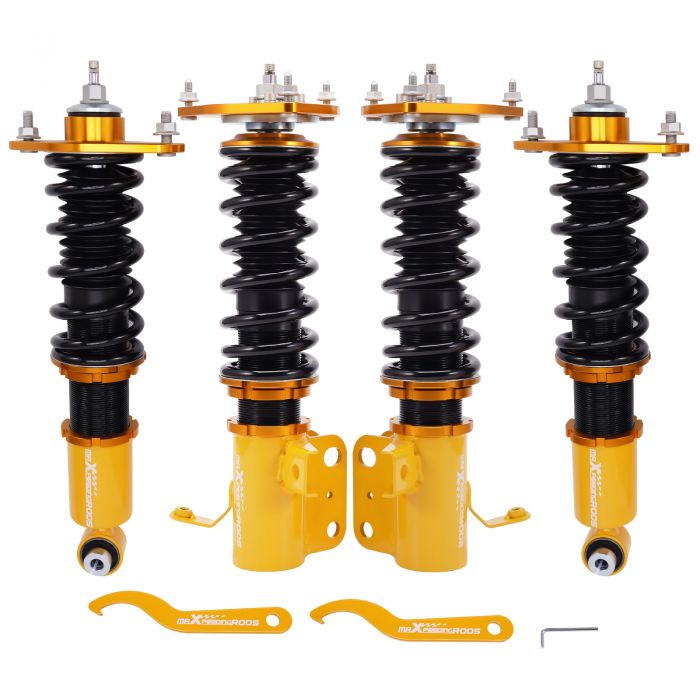

product included: complete coilovers 2 front and 2 rear as shown in the picture

Dimension

Size: 63*51*21 cm\
Weight: 21.24 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. \
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.\
Twin-Tube structure allows sufficient stroke within the shock absorber.\
Pillow ball top mount - It improves the steering feel and response.\
Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
Separate height adjustment does not affect damper stroke.\
Height can be adjusted with coilovers installed on the vehicle.\
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
Height Adjustment tools included.\
Full rebuildable.
