Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for HONDA PRELUDE BB1/BB2 1992-1996
\ Compatible for HONDA PRELUDE SIR/SIR S SPEC/TYPE S BB6/BB8 1996.11-2000.08

Specification

Top mounts: pillow ball top mounts
\ Damping: 24 levels rebound damping adjustable
\ Spring rate Front: 8 kg/mm (448 lbs/in)
\ Spring rate Rear: 7 kg/mm (392 lbs/in)
\ Spring length Front: 180mm
\ Spring length Rear: 200mm
\ Adjustable height: lowering 1-3 inch
\ Coilover overall length Front: 420mm-465mm
\ Coilover overall length Rear: 550mm-645mm
\ Shock type: Twin tube
\ Spring preload: 7-10 mm
\ Color: red

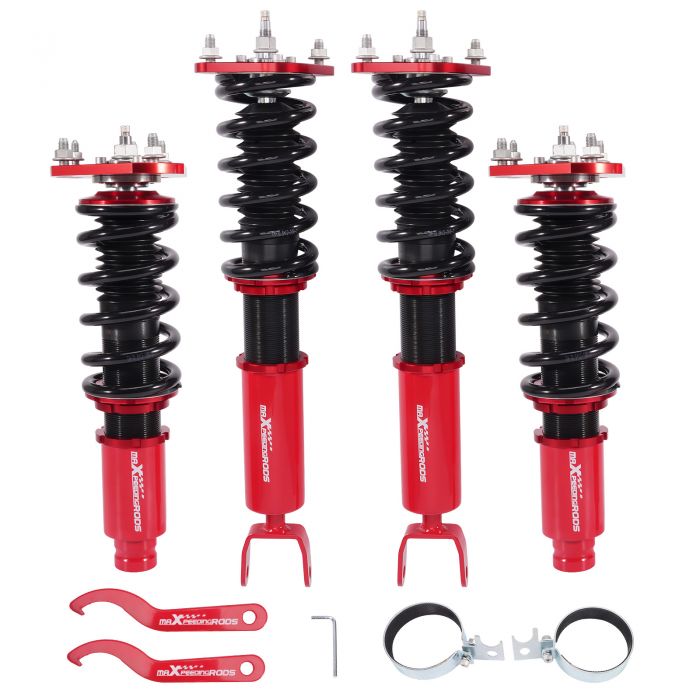

Package included

complete coilovers for 2 front and 2 rear
\ a pair wrench for height adjustment

Dimension

weight: 23860g
\ size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
\ 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
\ 3. Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4. Separate height adjustment does not affect damper stroke.
\ 5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
\ 6. Height Adjustment tools included.
\ 7. Pillow ball top mount - It improves the steering feel and response.
\ 8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 9. Full rebuildable.
