Performance Coilovers compatible for Mitsubishi Eclipse 4G 2006-2012 Adj Damper Shock Strut

SKU

3002102151

Skip to the beginning of the images gallery

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Mitsubishi Eclipse IV 2006–2012 (DK2A/DK4A)
\ Compatible for Mitsubishi Galant (DJ) 2004-2012

Specification

Top mounts： front camber plate
\ rear rubber top mount
\ Damping: 24 levels rebound damping adjustable
\ Spring rate: front 7 kg/mm (392 lbs/in) rear 6 kg/mm (336 lbs/in)
\ Adjustable height: Yes lowering 1" to 3"
\ shock type: Twin tube
\ spring Preload: 7-10 mm
\ color: gold body with black spring

Package included

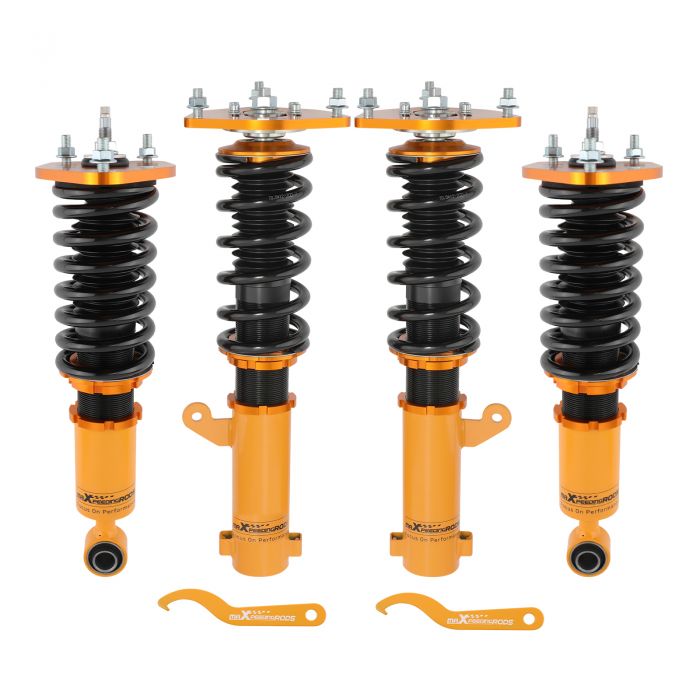

Package included: complete coilover assemblies 2 front and 2 rear
\ a pair of wrench for height adjustment

Dimension

Package dimension : 63*51*20
\ Weight: 23900g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
\ 3.Camber plate top mounts help to eliminate the need for a separate camber kit.
\ 4.Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
\ 6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
\ 7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 9.Steel shock bodies with special surface treatment to improve the durability.
\ 10. Full rebuildable
