Engine Timing Locking Tools Kit Compatible For Opel Chevrolet 1.2 1.4 Turbo A12XEL A14NEL
SKU
3002906734
Engine Timing Locking Tools Kit Compatible For Opel Chevrolet 1.2 1.4 Turbo A12XEL A14NEL
Introduction
Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain.
Fitted to the for Vauxhall for Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump.
Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held.
In the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.
Application
Compatible For Vauxhall / Opel Adam 1.2 1.4 (2012- 2020),
Compatible For Vauxhall / Opel Ampera 1.4 (2011- 2020)
Compatible For Vauxhall / Opel Astra-J 1.4 (2009-2020)
Compatible For Vauxhall / Opel Corsa-D 1.0 1.2 1.4 (2009-2020)
Compatible For Vauxhall / Opel Cascada 1.4 (2013-2020)
Compatible For Vauxhall / Opel Insignia 1.4 (2011-2020)
Compatible For Vauxhall / Opel Meriva-B 1.4 (2010-2020)
Compatible For Vauxhall / Opel Mokka 1.4 (2012-)
Compatible For Vauxhall / Opel Zafira-C Tourer 1.4 (2011-2020)
Compatible For Chevrolet Aveo1.2 1.4 (2011-2020)
Compatible For Chevrolet Cruze 1.4 (2011-2020)
Compatible For Chevrolet Orlando 1.4 (2012-2020)
Specification
OE/Part number
KM-952
KM-953-A
EN-499-78
EN-49977-100
EN-49977-200
KM-955-2
KM-955-1
Engines Code:
1.0: A10XEP (LDB),
1.2: A12XEL (LWD), A12XER (LDC),
1.4: A14XEL (L2Z), A14XER (LDD), LDU
1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines
Engine Codes:
LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER, LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP, A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER

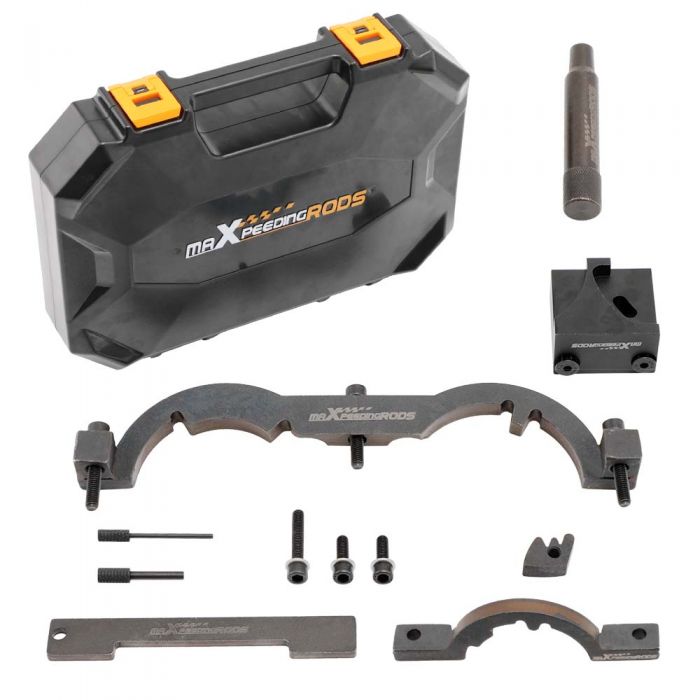

Package included:
Crankshaft Locking Pin
Camshaft Setting Plate
VVT Sensor Setting Tool (1.0L)
VVT Sensor Setting Tool (1.2 & 1.4L)
Camshaft Sprocket Holding Tool
4mm Chain Tensioner Locking Pin
2.5mm Chain Tensioner Locking Pin
Dimension
Gross weight: 2.32kg
Package size: 36*29*11cm
Note
It is an aftermarket tool, it serves as a replacement of the original tool.
If you have any questions, please feel free to contact us at any time.
Box Color: The color of the box is random.
