Turbocharger compatible for Audi A3 A4 TT 1.8T 1.8 L K04 K03 Upgrade Turbolader K04-001 Turbo

Application

Compatible for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
\ Compatible for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
\ Compatible for Ford Transit IV 2.5 TD Engine FT 190 4EB/4EA/4EC 1991-
\ Compatible for Volkswagen BEETLE, compatible for Seat IBIZA upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
\
\ Compatible for Audi A3 UPGRADED 1.8L P AUM 96 -
\ Compatible for Audi A3 1.8L P 96 - 99
\ Compatible for Audi A3 1.8T 1.8L P ARZ/APP/AUQ 00 -
\ Compatible for Audi TT 1.8T 1.8L P APP/AUM/AUQ/ARY 99 -
\ Compatible for Audi A4 1.8T 1.8L P AVJ 01 -
\
\ Compatible for VW BEETLE 1.8T 1.8L P AUM/AWU/AWV/BKF/BNU 00 -
\ Compatible for VW BORA SPORT 1.8T 1.8L P AUM /AWU/AUQ 02 -
\ Compatible for VW GOLF GTI 1.8L P AUM /AWU/AUQ 00 -
\
\ Compatible for Seat LEON 1.8T 1.8L P AJQ 00 -
\ Compatible for Seat LEON compatible for CUPRA 1.8L P ARY 02 -
\ Compatible for Skoda OCTAVIA 1.8T 1.8L P AUQ 02 -
\ Compatible for Skoda SUPERB 1.8T 1.8L P AUQ 02 -
\
\ *IMPORTANT NOTICE:
\ 1.This is an upgraded K04 turbo for K03-053 & K03 -052.Do not for K04-022.
\ 2.K04 -001 turbo is different from K03-052 ＆ K03-053
\ （1）some modification are needed，compressor intake size is bigger than K03-052 or K03-053
\ K03-052 ＆K03-053 compressor intake size is 45mm
\ K04-001 compressor intake size is 48.7mm
\ （2）Silicone hose may need for K04-001 compressor intake connection.
\ 3.Make sure your OE number is correct for K04-001,K03-052 and K03-053

OE/Part number

K04-001 part number/OE number:
\ 53049500001,5304-950-0001, 5304 950 0001,
\ 53049887501,5304-988-7501, 5304 988 7501,
\ 53049880001,5304-988-0001, 5304 988 0001,
\ 53049700015,5304-970-0015, 5304 970 0015,
\ 06A-145-705HP, 06A145705HP,
\
\ *IMPORTANT NOTICE:
\ This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)
\ K03-052 Part/OE number:
\ 53039700052,5303 970 0052,5303-970-0052,
\ 53039880052,5303 988 0052,5303-988-0052,
\ 53039880094,5303 988 0094,5303-988-0094,
\ 06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,
\
\ K03-053 Part/OE number:
\ 53039880053,5303 970 0053,5303-970-0053,
\ 53039880058,5303 988 0058,5303-988-0058,
\ 06A145681H,06A145702P,06A145704S,
\ 06A145713B,06A145713L,06A145713M,

Specification

Turbo Model: K04-001
Engine Model: 1.8L-5V
Universal Fitment: No
Finish: Matte
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 400HP
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g

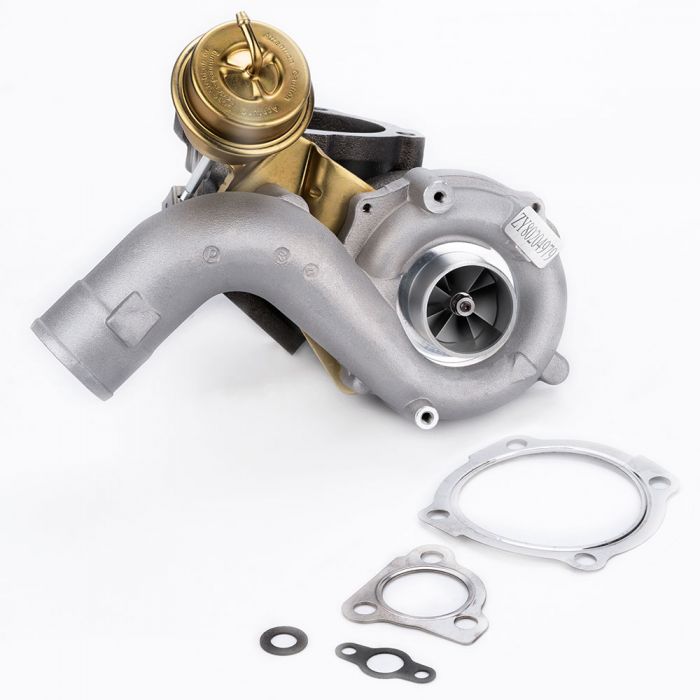

Package included

1x Turbocharger
\ 2x Flange gaskets
\ 2x Oil port gaskets
\ 2x Water port gasket

Feature

* Product Material
\ 1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
\ 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
\ 3. Compressor housing：ZL104 aluminum with lightweight
\ 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
\
\ * Product Performance
\ 1. OEM-quality and size with little modification
\ 2. Rich experience in turbo production and own factory
\ 3. High-Speed oil seal ring and Precision clearance
\
\ * Technology Advantage:
\ 1. 100% balancing Test by TURBOTECHNICS VSR3
\ 2. G3-min-Flow VNT Turbo testing
\ 3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
\ * Professional installation is highly recommended
\ * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
