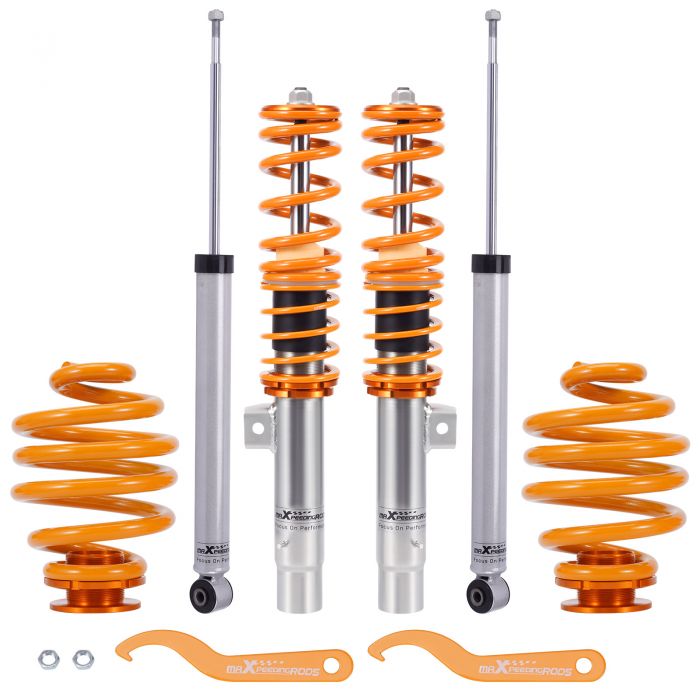

Compatible for BMW E46 3 Series 320i 330i M3 98-06 Street Coilover Suspension

Introduction

maXpeedingrods' MXR-S1 series is ideal for those who want to change the old worn-out strut but improve handling at same time. It features with height adjustable and maintain the OE ride quality to the greatest extent.

Application

Compatible for BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
\ Compatible for BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
\ Compatible for BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
\ Compatible for BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
\ note: not for Xi/xd 4 wheel drive
\ NOTE： shoter swaybar end link required.

Specification

Top mounts: front and rear OE top mounts required
\ Damping: not available
\ Spring rate Front: 8 kg/mm (478 in/lbs)
\ Spring rate Rear: 10 kg/mm (560 in/lbs)
\ Spring length Front: 170mm
\ Spring length Rear: 190mm
\ Adjustable height: lowering 35mm-75mm
\ Coilover overall length Front: 365mm-525mm
\ Coilover overall length Rear: 455mm-655mm
\ Shock type: Twin tube
\ Color: gold
\ Drop links: Shortened drop links are required

Package included

springs and shocks for front and rear, no top mounts included
\ a pair wrench for height adjustment

Dimension

weight: 21660g
\ size: 71*51*21 cm

Feature

1. Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 2. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
\ 3. Height Adjustment tools included.
\ 4. Steel shock bodies are electroplated with Zinc for Anti-corrosion.
