Assembly Coilovers Kits compatible for Ford Mustang 2005-2014 Adj. Height and Mounts

SKU

3002102509

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Able to lower ride height by 1''-3''; allows user to have a more aggressive stance and can adjust without taking coilovers out the car

2.High Quality Components

Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

3.High Tensile Strength Spring

Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%

4.Twin-tube Construction

Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

2005-2014 compatible for Ford Mustang S-197\
2005-2014 compatible for Ford Mustang GT S-197

Specification

Top mount: Front camber plate\
Front spring rate: 8kg/mm (448 lbs/in)\
Rear spring rate: 6kg/mm (336 lbs/in)\
Adjustable height: lowering 1-3 inch\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold body with black spring

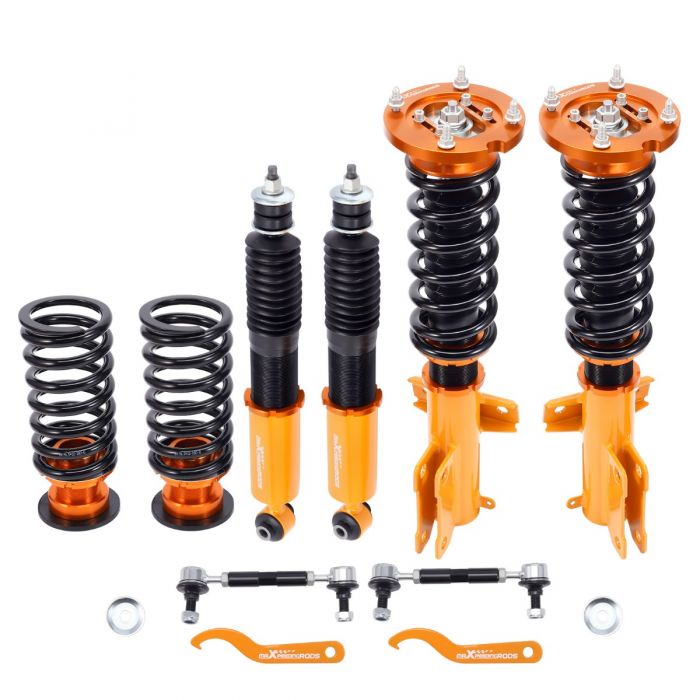

Package included

Front complete coilover assembly\
Rear springs and spring adjusters and shocks \
A pair of front drop links\
A pair wrench for height adjustment

Dimension

Package dimension : 71*51*21 \
Weight: 27500g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Camber plate top mounts help to eliminate the need for a separate camber kit.\
3.Twin-Tube structure allows sufficient stroke within the shock absorber.\
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.\
6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.\
8.Steel shock bodies with special surface treatment to improve the durability. \
9.Full rebuildable

Note

NOT compatible for Shelby GT500 Models
