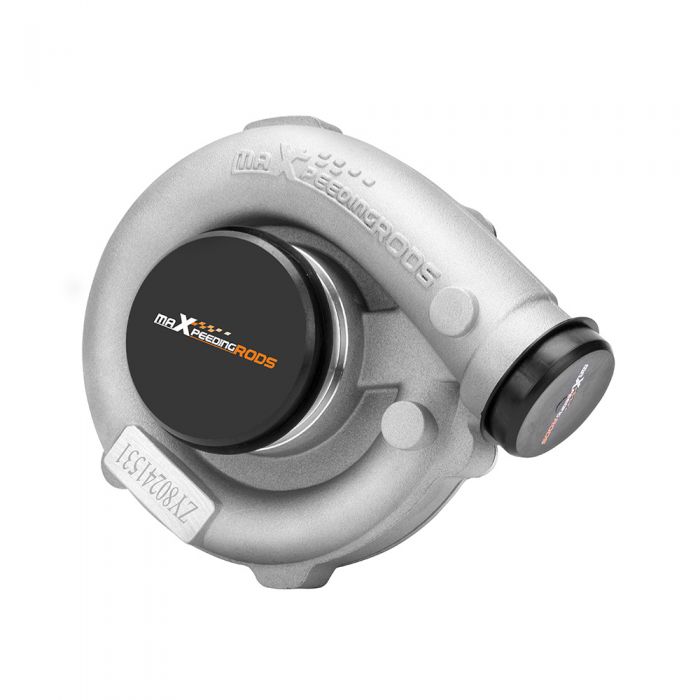

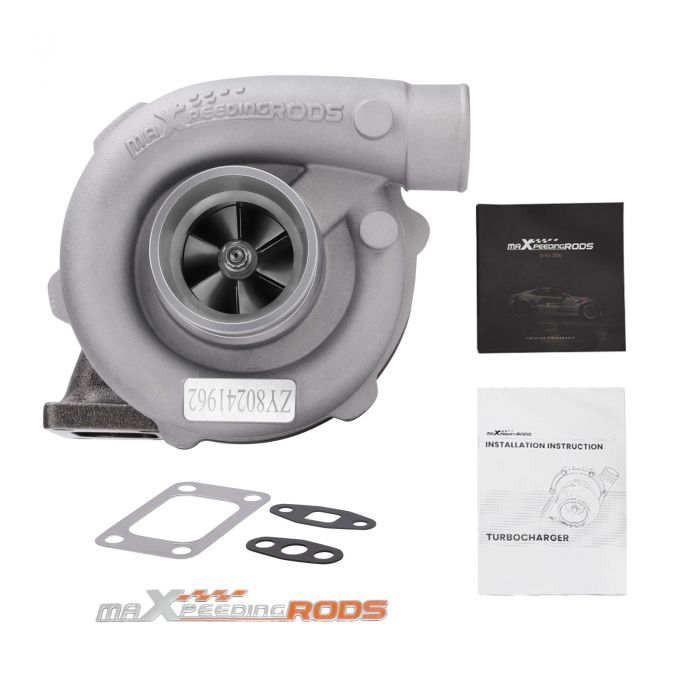

Universal T3 T4 T04E Turbo Turbocharger .57 A/R Oil Cooled for 1.5-2.5L 400HP

SKU

3002906150

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Cost effective turbocharger give your car 20-40% power than a non-turbo car of the same year, make and model

Ductile Iron QT450-10, the material used for the exhaust housing, is temperature resistant up to 700℃

K418 Alloy, the material used for the exhaust impeller, has high oxidation resistance & stability (resistance up to 900℃)

The cast aluminium blades are great airtight seal, airflow, light weight, and corrosion resistant

Introduction

Looking to boost your car's power? Is your car's original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application

This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 19（1.3Bar）

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Specification

Bearing: Floating Bearing
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet：45mm/87mm
Compressor outlet：42mm(inside diameter)、52mm(outer diameter)
Compressor inlet：68 mm(inside diameter)、77mm(outer diameter)
Hosepower: Up to 400+HP
Condition: Brand New
Package Size:26x 25x 23 cm
Package Weight: 7250g

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Professional Installation is Highly Recommended.
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.

Features

- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
- Compressor housing：ZL104 aluminum.
Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
- 100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
- High Quality Material.
- Boost Engine Horsepower Significantly.
- Increase Engine Power and Torque Outpout.
- Maintain Combustion Chamber Pressure and Fuel/Air Load.
- Built for Durability and Strength.
