Maxpeedingrods Full Coilover Suspension Lowering Kits compatible for Honda Civic 1989-2000 for Acura Integra

SKU

3002033394

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Able to lower ride height by 1''-3''; allows user to have a more aggressive stance and can adjust without taking coilovers out the car

2.High Quality Components

Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

3.High Tensile Strength Spring

Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%

4.Twin-tube Construction

Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for HONDA CIVIC 1989-1991 ED2 ED3 ED4 ED6 ED7 EC8 EE9 Rear FORK TYPE BRACKET MODEL ONLY\
compatible for HONDA CRX 1989-1991 ED8 ED9 EE8 Rear FORK TYPE BRACKET MODEL ONLY\
compatible for HONDA CIVIC 1992-1995 EG1 EG2 EG3 EG4 EG5 EG6 EG8 EG9 EJ1 EJ2 EH2 EH3 EH9 Rear FORK TYPE BRACKET MODEL ONLY\
compatible for HONDA CIVIC 1995-2000 EK2 EK3 EK4 EJ6 EJ7 EJ8 EM1 Rear FORK TYPE BRACKET MODEL ONLY\
compatible for HONDA DELSOL 1993-1997 EG1 Rear FORK TYPE BRACKET MODEL ONLY\
compatible for ACURA INTEGRA 1994-2001 DC2 DC4 Rear FORK TYPE BRACKET MODEL ONLY

Specification

Frant and Rear top mount: rubber \
Spring rate Front: 8 kg/mm (448 lbs/in)\
Spring rate Rear: 5 kg/mm (280 lbs/in)\
Spring length Front: 180mm\
Spring length Rear: 180mm\
Adjustable height: lowering 1-3inch \
Coilover overall length Front: 365mm-410mm\
Coilover overall length Rear: 435mm-480m\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold body with black spring

Package included

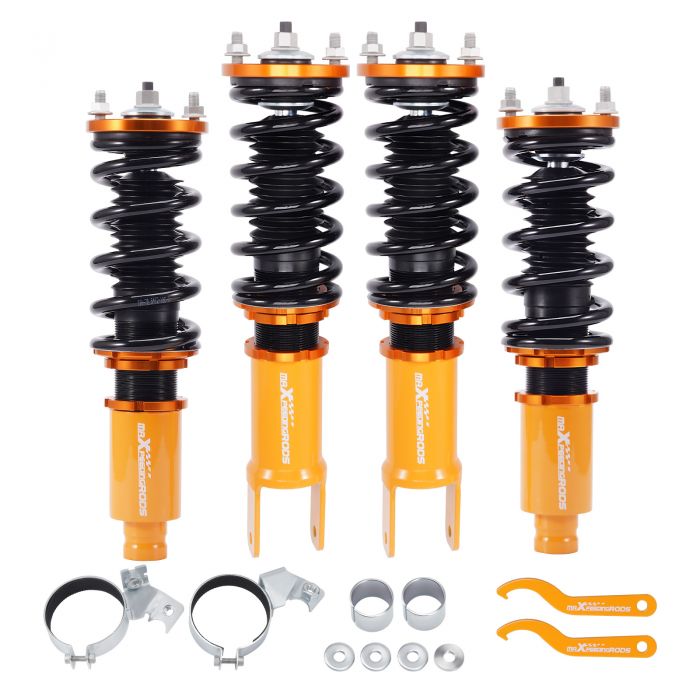

Complete coilovers assembly 2 front and 2 rear\
A pair wrench for height adjustment

Dimension

Package dimension : 71*51*21 \
Weight: 22260g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
3. Twin-Tube structure allows sufficient stroke within the shock absorber.\
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
5. Separate height adjustment does not affect damper stroke.\
6. Height can be adjusted with coilovers installed on the vehicle.\
7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
8. Height Adjustment tools included.\
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.\
10. Steel shock bodies with special surface treatment to improve the durability.\
11. Full rebuildable.

Note

For some vehicles, you will need sleeves and \
washers that already included in our package.
