Air Spring to Coil Spring Conversion Kits compatible for Jaguar XJ8 Series 04-10 C2C41349

SKU

3002058726

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Damping & Height

Unique 24 levels of damping adjustments ensure the stability of damping performance under various conditions

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

FOR: Compatible for JAGUAR XJ8 / XJR (X358) 2007 -2009 \
FOR: Compatible for JAGUAR XJ8 / XJR (X350) 2003 -2007

Specification

Top mounts: standard rubber top mounts for front and rear\
Damping: 24 levels rebound damping adjustable\
Spring rate Front: 14 kg/mm (784 lbs/in)\
Spring rate Rear: 8 kg/mm (448 lbs/in)\
Spring length Front: 230mm\
Spring length Rear: 230mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 500mm-600mm\
Coilover overall length Rear: 570mm-690mm\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold

Package included

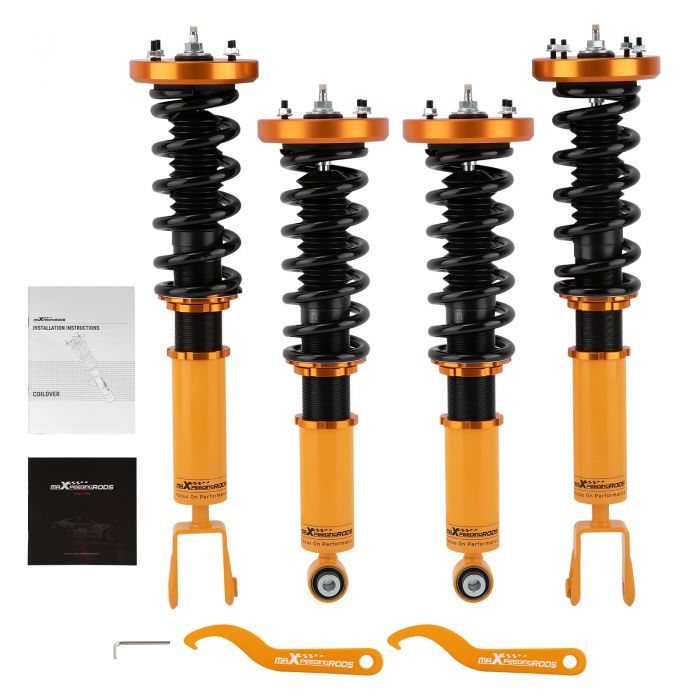

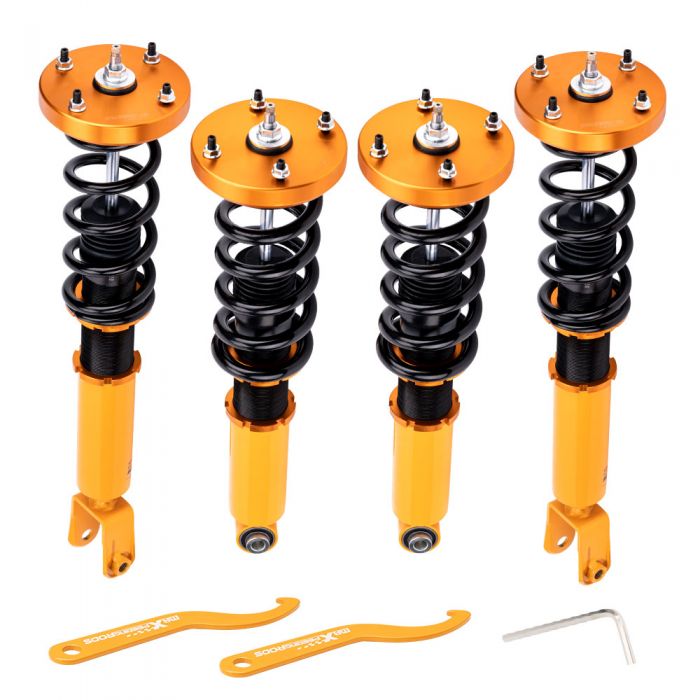

complete coilovers for 2 front and 2 rear\
a pair wrench for height adjustment

Dimension

weight: 28150g\
size: 70*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance \
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.\
3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
4. Twin-Tube structure allows sufficient stroke within the shock absorber.\
5. Separate height adjustment does not affect damper stroke.\
6. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.\
7. Height Adjustment tools included.\
8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. \
9. Steel shock bodies with special surface treatment to improve the durability.\
10. Full rebuildable.
