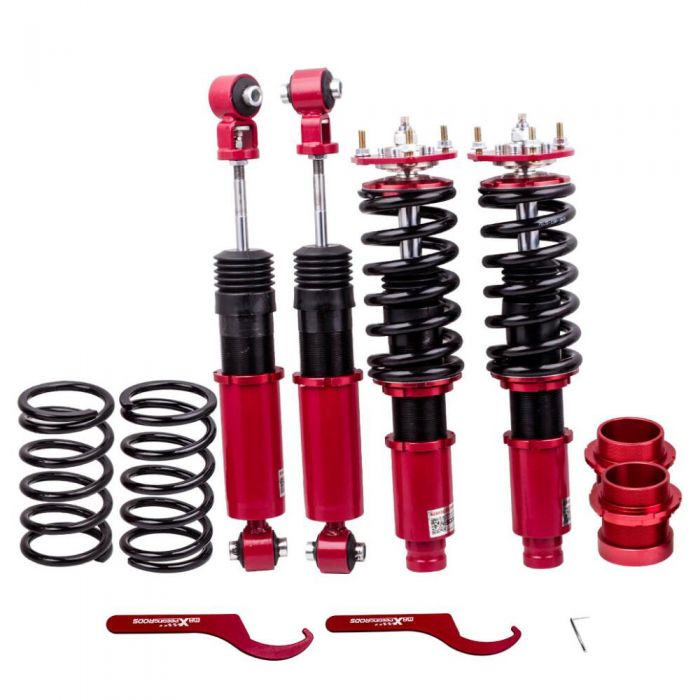

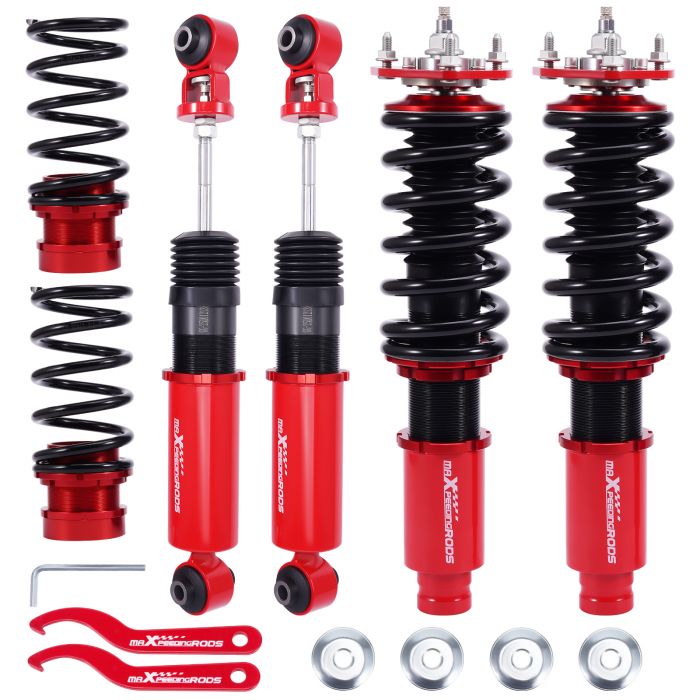

Compatible for Mazda 6 2003 2004 2005 2006 2007 Adj Damper Shock Absorbers New Coilover Kit

SKU

3002104562

Skip to the beginning of the images gallery

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Mazda6 2003-2006 GG 4-door sedan
\ Compatible for Mazda6 2003-2006 GG 5-door liftback
\ Compatible for Mazda6 2003-2006 GG 5-door wagon
\ Compatible for Mazdaspeed6/Mazda 6 MPS 2005-2007 4-door sedan

Specification

Top mount: Front pillow ball
\ Damping: 24 ways rebound damping
\ Spring rate Front: 9 kg/mm (504 in/lbs)
\ Spring rate Rear: 9 kg/mm (504 in/lbs)
\ Adjustable height: lowering 1-3 inch
\ Shock type: Twin tube
\ Spring Preload: 7-10 mm
\ Color: red body with black spring

Package included

front complete coilover assembly
\ rear springs and spring adjusters and shocks
\ A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
\ Weight: 25080g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
\ 2.A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
\ 3.Twin-Tube structure allows sufficient stroke within the shock absorber.
\ 4.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
\ 5.Dust boot included to protect damper seal
\ 6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
\ 7.Most pieces in our coilover systems,including collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 8.Steel shock bodies with special surface treatment to improve the durability.
\ 9.Full rebuildable
