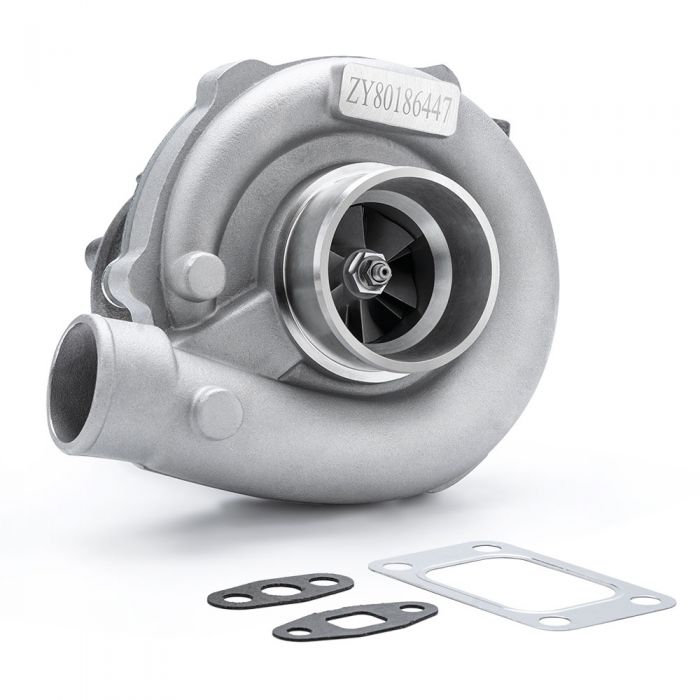

T04E T3T4 turbo .63 A/R Turbo/turbocharger Turbine 5 Bolts Flange COMPRESSOR 400+HP BOOST STAGE III

SKU

3002032780

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Cost effective turbocharger give your car 20-40% power than a non-turbo car of the same year, make and model

Ductile Iron QT450-10, the material used for the exhaust housing, is temperature resistant up to 700℃

K418 Alloy, the material used for the exhaust impeller, has high oxidation resistance & stability (resistance up to 900℃)

The cast aluminium blades are great airtight seal, airflow, light weight, and corrosion resistant

Introduction

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrodsentry level universal turbogot just what you're looking for. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine, Horse Power Boost up to 400BHP
Maximum 18PSI

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.63
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet :
Turbine exhaust inlet：44.5mm/81mm
Compressor outlet：45mm(inside diameter)、53mm(Outer diameter)
Compressor inlet：68 mm(inside diameter)、72mm(Outer diameter)

Feature

*Product Material
1. Turbine housing: Ductile iron qt450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: Zl104 aluminium with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance
*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. Quality assurance
4. High-speed oil seal ring
5. Strict quality inspection
6. Improve emissions & save oil
7. Built for durability and strength
*All necessary gaskets included for ease of installation

Advantages

1、100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2、All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel： the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing :Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius.
3. Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
4. Warranty: one year warranty for any manufacturing defect.

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Professional Installation is Highly Recommended.
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
