Compatible for Toyota Supra JZA70 MA70 GA70 86-92 Shock Absorbers Height Adjustable Coilovers

SKU

3002032830

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4. Twin-tube Construction Dust boot protects damper seal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for TOYOTA　SUPRA　1986.01-1990.08　JPN　MA70　GT TURBO, GT TWIN TURBO S\
compatible for TOYOTA　SUPRA　1986.01-1993.04　JPN　GA70　G, GT, GT TWIN TURBO\
compatible for TOYOTA　SUPRA　1987-1992　USA　MA70L\
compatible for TOYOTA　SUPRA　1990.08-1993.04　JPN JZA70　GT, TWIN TURBO, TWIN TURBO R\
compatible for TOYOTA　SOARER　1986.01-1991.05　JPN　GZ20　GT TWIN TURBO, TWIN TURBO L, 2.0VX\
compatible for TOYOTA　SOARER　1986.01-1991.05　JPN　MZ20　GT, GT LIMITED

Specification

Top mounts: rubber front and rear \
Damping: not available\
Spring rate: front 14kg/mm (784lbs/in)\
rear: 12 kg/mm (672 lbs/in)\
adjustable height: Yes lowering 1" to 3"\
shock type: Twin tube\
color: gold body with black spring

Package included

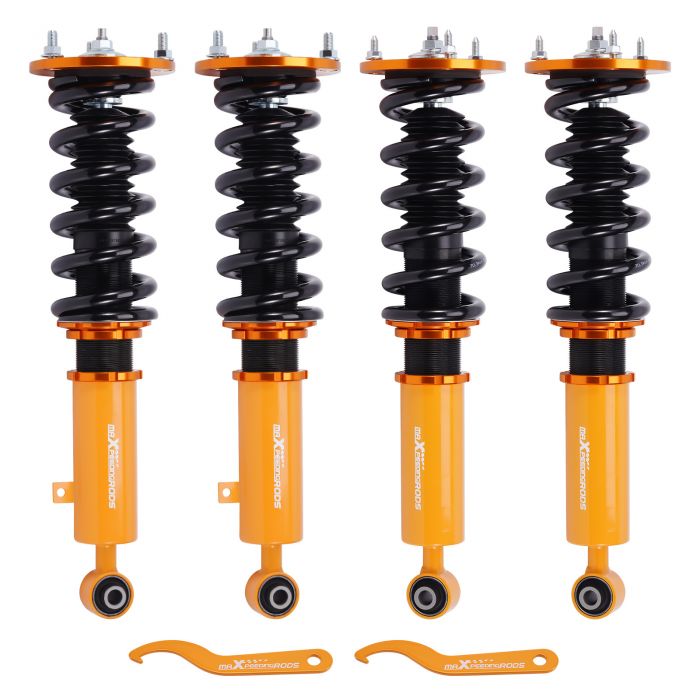

product included: complete coilovers 2 front and 2 rear\
a pair wrench for height adjustment

Dimension

package weight: 25820g\
package dimension: 71*51*21

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance\
2， Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. \
3，Twin-Tube structure allows sufficient stroke within the shock absorber.\
4，Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
5，Separate height adjustment does not affect damper stroke.\
6，Height can be adjusted with coilovers installed on the vehicle.\
7，High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
8，Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
