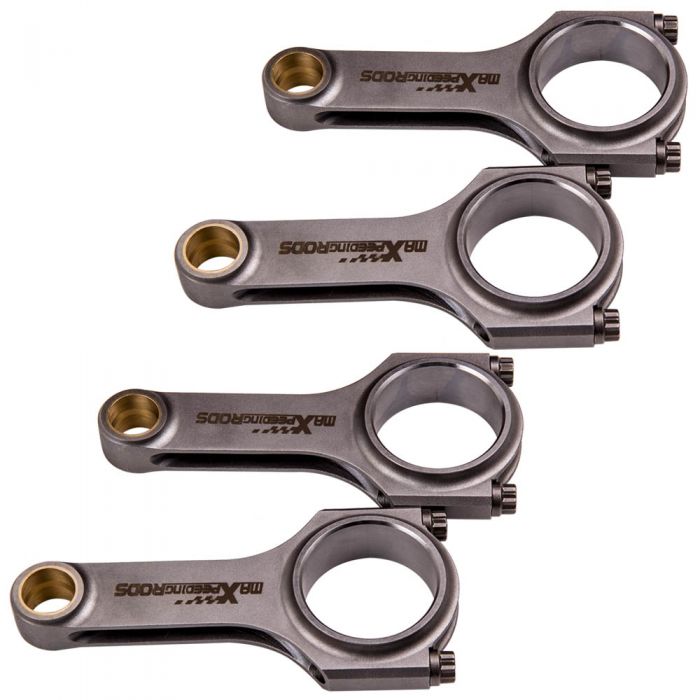

Forged 4340 EN24 H-Beam Connecting Rods Bolts compatible for Honda/ Acura H23/F22 2.2L 2.3L

<p><strong>Application</strong><br></p> <p><span><span>Compatible for Honda/Acura H23/F22 2.2L 2.3L</span></span></p> <p><br></p> <p><span><span><strong>Specification</strong></span></span></p> <p><span><span>*Type: Forged 4340 aircraft chrome moly quality steel for racing<br> *H-beam Conrods Quantity: 4 Pieces as showing in picture<br> *Bolts: Including&nbsp; ARP 2000 3/8" bolts&nbsp; (Note: Extra cost for upgrading to ARP L19 bolts)<br> *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.<br> *Advertised Horsepower Rating:200HP/piece<br> *Top acceleration: 9000rpm<br> *package size：28CM*21CM*10CM</span></span></p> <p><br></p> <p><span><span><strong>Dimension</strong></span></span></p> <p><span><span>Center to center length:141.5mm</span></span></p> <p><span><span>Big end diameter:51mm</span></span></p> <p><span><span>Small end diameter:22mm</span></span></p> <p><span><span>Big end width:23.8mm</span></span></p> <p><span><span>Small end width:23.8mm</span></span></p> <p><br></p> <p><span><span><strong>Feature</strong></span></span></p> <p><span><span>1. TüV Certification Con Rods； </span></span></p> <p><span><span>2. H-Beam design reduces weight without compromising strength； </span></span></p> <p><span><span>3. Heat-treating &amp; Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；</span></span></p> <p><span><span>4. 100% CNC machined,Precision rod cap alignment dowels； </span></span></p> <p><span><span>5. Bores finished to +/- .01 mm；</span></span></p> <p><span><span>6. Balanced to within +/- 1 g per rod； </span></span></p> <p><span><span>7. Each rod is magnetic particle tested to ensure free of flaws； </span></span></p> <p><span><span>8. 100% X-rayed, sonic tested； </span></span></p> <p><span><span>9. Custom-made Service.</span></span></p><p><span><span><br></span></span></p> <p><span><span><strong>Note</strong></span></span></p> <p><span><span>*Professional installation is highly recommended ； </span></span></p> <p><span><span>*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.</span></span></p>
Warranty: one year warranty for any manufacturing defect
