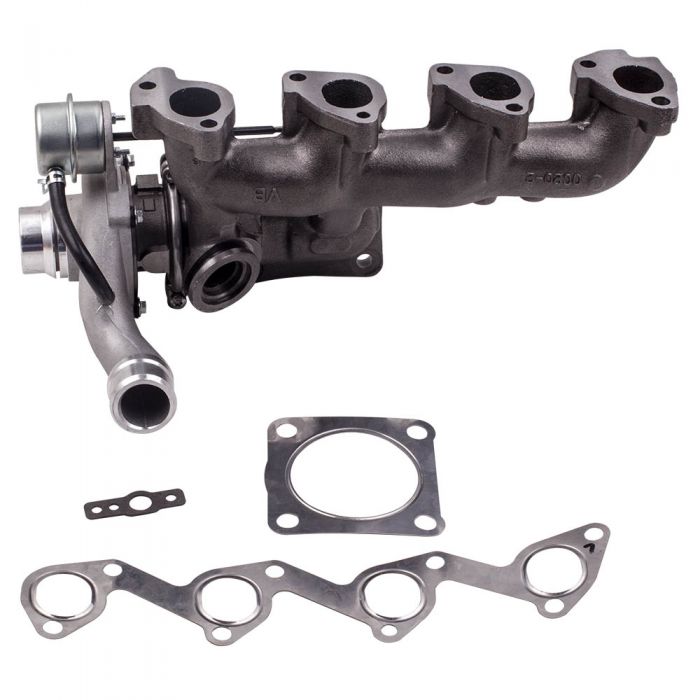

2002 - 2013 compatible for Ford Transit Connect 1.8TDCI 66 kW BHDB/C9DB GT1544Z turbo charger

SKU

3002034623

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

OEM-quality and size with little modification

Turbine housing uses cast iron withstand temperatures up to 700℃

Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃

Cast aluminium blades with good gas tightness and corrosion resistance

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Compatible for Ford Focus I 1.8 TDDi 90 BHP 66 kW BHDB/C9DB engine 1999-2004
Compatible for Ford Tourneo 1.8 TDCi 90 BHP 66 kW BHDB/C9DB engine 2002-2013
Compatible for Ford Transit V 1.8 TDCI 90 BHP 66 kW BHDB/C9DB engine 1999-
Compatible for Ford Transit Connect 1.8 TDCI 90 BHP 66 kW BHDB/C9DB engine 2002-2013

Turbo Model

GT1544MSZ GT1544Z

Turbo Part Number & OEM Number

706499-0001 / 706499-0002 / 706499-0004 / 706499-5001S / 706499-5002S / 706499-5004S
802419-0006 / 802419-0010 / 802419-5010S / 802419-5006S / 1351395 / 1314620 / 1211269
708618-1 / 802419-1 / 714716-1 / 706499-1 / 706499 / 802419 / 714716 / 708618 / 1094575
XS4Q6K682DB / XS4Q6K682DC / XS4Q6K682DD / XS4Q6K682DE / XS4Q6K682DF
XS4Q-6K682-DB / XS4Q-6K682-DC / XS4Q-6K682-DD / XS4Q-6K682-DE / XS4Q-6K682-DF

Feature

* Turbine housing adopts ductile iron QT450-10 able to withstand temperatures up to 700℃.
* Steel Turbine Wheel constructed from K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
* Cast aluminium blades with good air tightness and corrosion resistance
* OEM-quality and size with little modification

Specification

Cooling Type：Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearing: 270 Degrees
Condition: Brand New
Warranty: one year warranty for any manufacturing defect
Accessories: You will get exactly as shown in the picture above

Note

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
*Professional installation is highly recommended (No Instructions are Included)
