GT30 GT3037 GT3076 Turbo charger 500HP 0.82 A/R + Oil Drain Return FEED Line kit
Introduction
A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.
Application
Perfect for all 4 / 6 cyl 3.0L-5.0L engine
Horse Power: Boost Horse Power up to 500BHP
Cooling Type: Water + Oil
Specifications
Turbochagrger+ Turbo Oil Feed Line
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Compressor
Compressor Trim: 56
Compressor Inducer Diamter: 57 mm
Compressor Exducer Diamter: 76.2 mm
Compressor A/R: 0.6
Turbine
Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 51
Turbine Inducer Diameter: 84 mm
Turbine Exducer Diameter: 60 mm
Turbine A/R: 0.82
Bearing Type: Journal Bearing

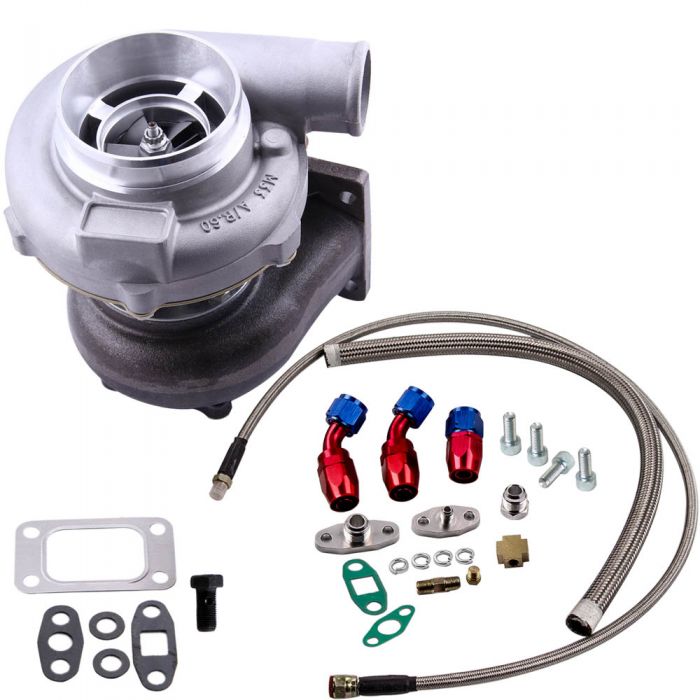

Accessories: You will get exactly as shown in the picture above
Warranty: one year warranty for any manufacturing defect
Features
- Universal turbochargers.
- Water and oil cooling system can extend the life of the turbo.
- High temperature resistance.
- Turbine-driven forced induction device.
- Enhance engine power and reduce energy consumption.
- Improve fuel economy and reduce exhaust emissions.
Notice
* This is an aftermarket oil line kit. Not all the component parts will be directly bolt on your car. You may still need some accessaries of your OEM oil line kit.
* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Please check our store for other auto parts you may be interested in.
* No instruction included; Professional installation and alignment suggested.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
