GT30 GT3037 GT3076 Turbo + 2.5 inch 64mm Aluminum Intercooler Piping pipe kit

Application

Perfect for all 4 / 6 cyl 3.0L-5.0L engines

Specification

TurboHorse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: No

Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
100% brand new  Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets

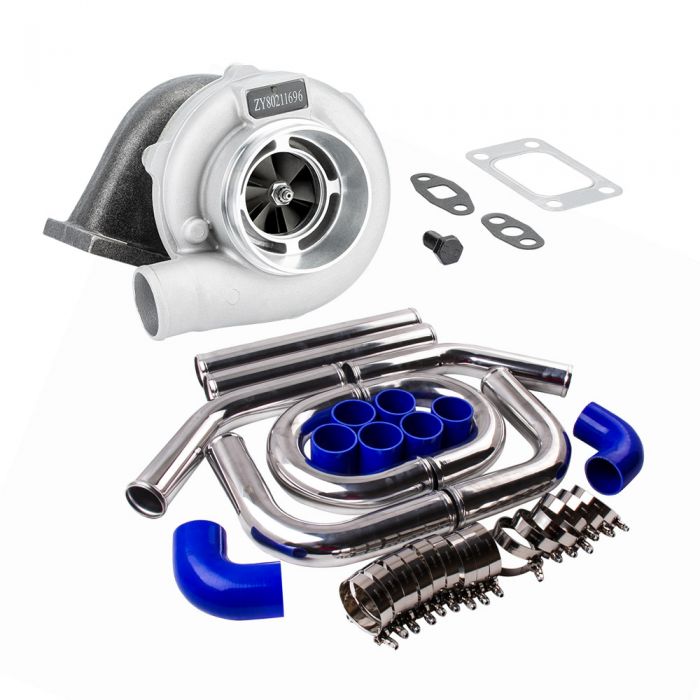

Accessories: You will get exactly as shown in the picture above

Condition: 100% brand new

Warranty: one year warranty for any manufacturing defect

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
