GT30 GT3037 GT3076 Turbo A/R .60 .82 + 3.0quot; 76mm Intercooler Piping Kit

Application

Perfect for all 4 / 6 cyl 3.0L-5.0L engines

Specification

Turbo

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: No

Piping Pipe Kit
Pipe length: 19.68''(500mm)

100% brand new  Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

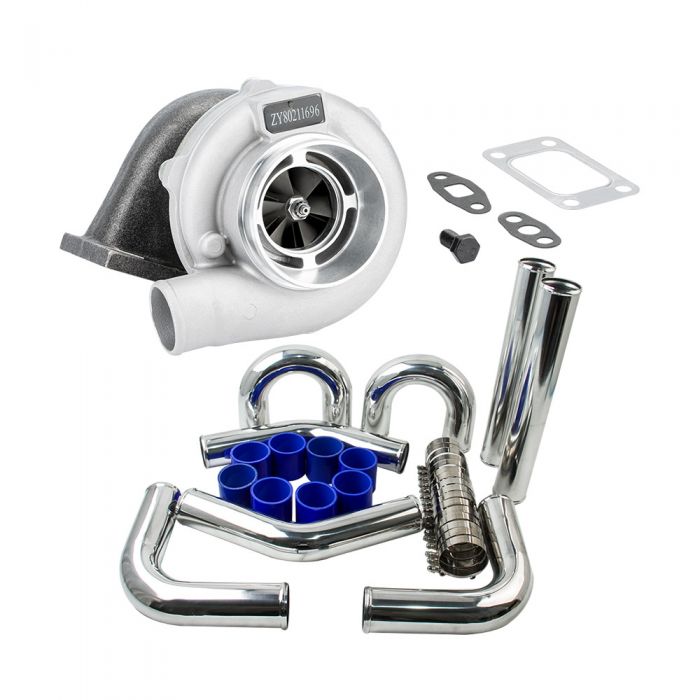

Package Including
1x Turbo and gaskets
2x 180 degrees Pipes
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes
8x 3" inch Straight Couplers
16x Clamps
1x Turbo and gaskets

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
