GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV and 64mm Pipe Kits and Intercooler 76mm
SKU
3002202332
GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV and 64mm Pipe Kits and Intercooler 76mm
Application
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
2.5" 64mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.
600x300x76mm Intercooler fits Universal engine & vehicle.
Perfect for all 4/6 cylinder and 3.0L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil
Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Wet Float
Warranty: one year
Internal Wastegate: No
Intercooler Turbo Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
-100% brand new Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished
Intercooler
Core Dimension: 600 X 300 X 76 MM
Inlet / outlet size: 3" inch
Thickness: 3" (76mm)
Pipe length: 18''
Pipe Thickness: 1.8mm
Core design: Tube & Fin
Color: Black
Inlet / outlet size: 3" inch
Thickness: 3" (76mm)
Pipe length: 18''
Pipe Thickness: 1.8mm
Core design: Tube & Fin
Color: Black
Intercoolers are designed with a tube and fin core which has the highest thermomic dissipative process.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

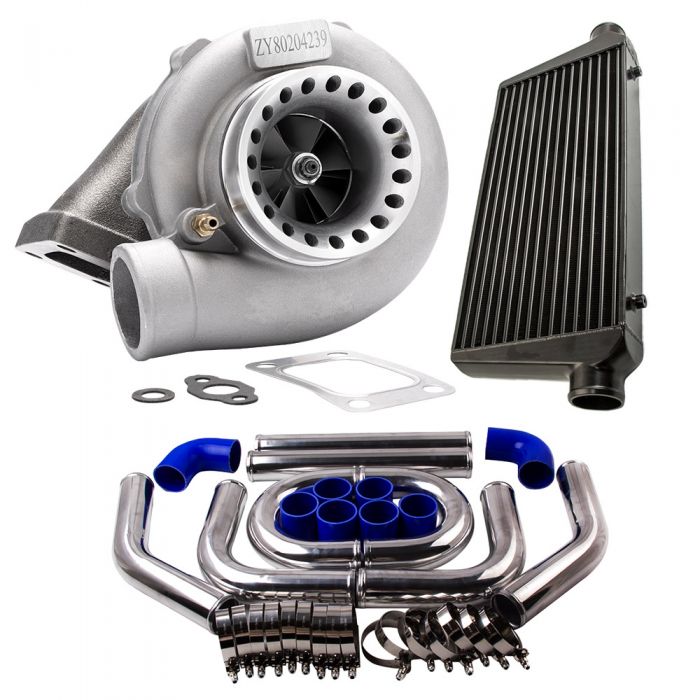

Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets
600x300x76mm Intercooler
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
