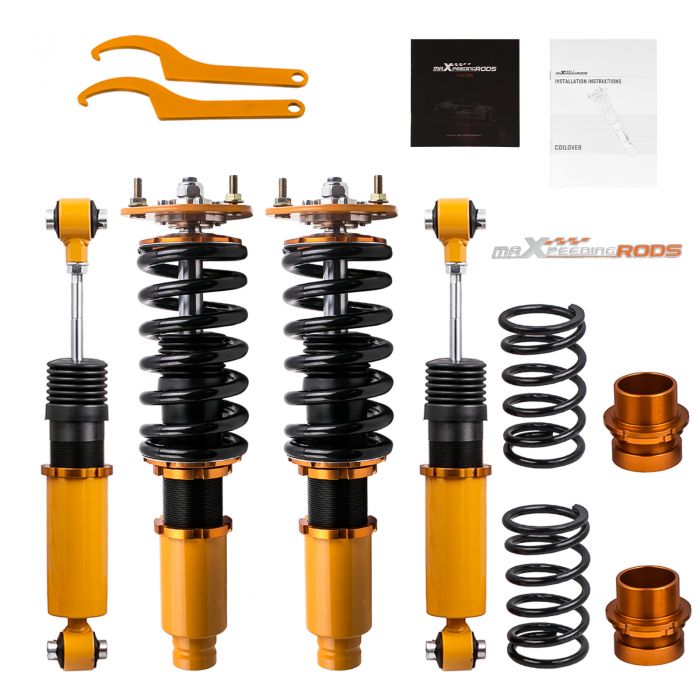

Compatible for Mazda 6 2003-2007 Adj Height Shock Absorber Coilovers Suspension Kit

SKU

3002104561

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved

4.Twin-tube Constructioneal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

compatible for Mazda6 2003-2006 GG 4-door sedan\
compatible for Mazda6 2003-2006 GG 5-door liftback\
compatible for Mazda6 2003-2006 GG 5-door wagon\
compatible for Mazdaspeed6/Mazda 6 MPS 2005-2007 4-door sedan

Specification

Top mount: Front pillow ball\
Damping: not available\
Spring rate Front: 9 kg/mm (504 in/lbs)\
Spring rate Rear: 9 kg/mm (504 in/lbs)\
Adjustable height: lowering 1-3 inch\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold body with black spring

Package included

front complete coilover assembly\
rear springs and spring adjusters and shocks \
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21 \
Weight: 25160g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2. Pillow ball top mounts improve the steering feel and response. \
3. Twin-Tube structure allows sufficient stroke within the shock absorber.\
4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
5,Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.\
6, Steel shock bodies with special surface treatment to improve the durability.\
7, Full rebuildable
