Coilover Suspension Kit Compatible for NISSAN 370Z Z34 G37 2008 2009 - 2016 Shock Absorber

SKU

3002104986

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4. Twin-tube Construction Dust boot protects damper seal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Application

Compatible for INFINITI G37 SEDAN 2009-2015 V36 USA RWD only\
compatible for INFINITI G37 COUPE 2008-2013 V36 USA EXC 4WD&CONVERTIBLE \
compatible for NISSAN 370Z 2009+ Z34 USA Coupe and Roadster\
compatible for NISSAN 370Z NISMO Z34 2009+USA NISMO COUPE（not for convertible）

Specification

Top mounts: pillow ball top mount front and rear.\
Damping: No adjustable damper force\
Spring rate Front: 10 kg/mm (560 lbs/in)\
Spring rate Rear: 7 kg/mm (392 lbs/in)\
Spring length Front: 230mm\
Spring length Rear: 200mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 500mm-600mm\
Coilover overall length Rear: 465mm-525mm\
Shock type: Twin tube.\
Spring Preload: 7-10 mm.\
Color: gold.\
Note：True Rear，not Divorced Rear (OEM Style)

Package included

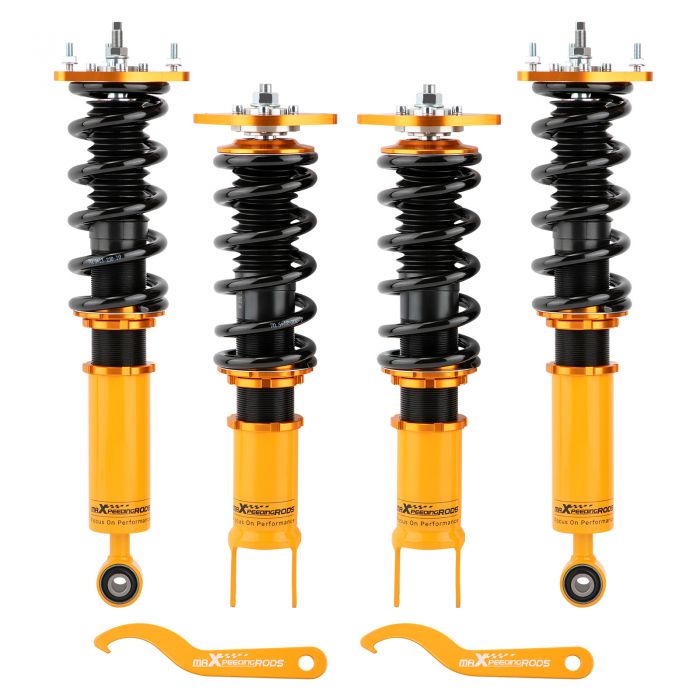

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight:24.12 kg\
Package size:63*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Pillow ball top mount - It improves the steering feel and response.\
3.Radial bearing in upper spring compatible for seat helps fast steering.\
4. Twin-Tube structure allows sufficient stroke within the shock absorber.\
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
6. Separate height adjustment does not affect damper stroke.\
7. Height can be adjusted with coilovers installed on the vehicle.\
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
9. Height Adjustment tools included. \
10. Full rebuildable.
