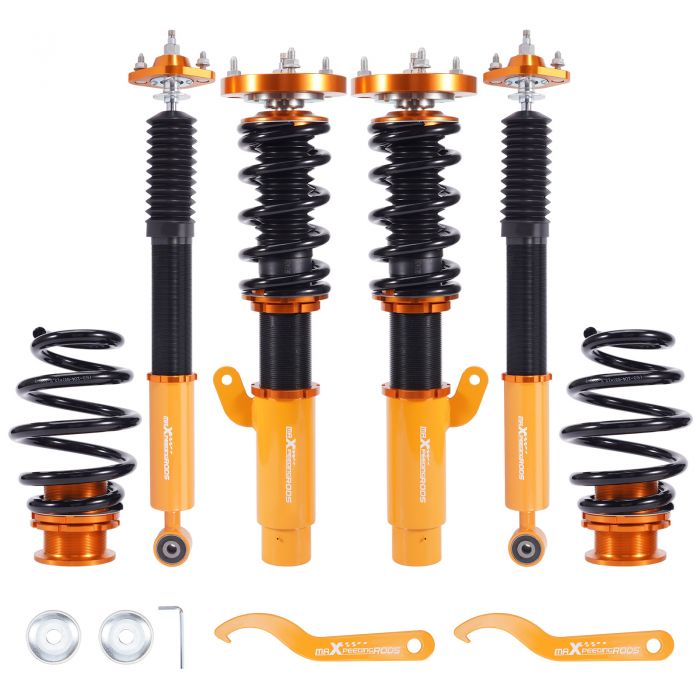

Maxpeedingrods 24 Way Damper Coilover Shock Strut compatible for BMW E46 3 Series 320i 328i 325i 330i 2001-2005

SKU

3002103752

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1.Adjustable Damper & Height

24-way adjustable damper force allows the user the ability to dial in your coilovers to any driving needs

2.High Quality Components

Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

3.High Tensile Strength Spring

Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%

4.Twin-tube Construction

Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Application

For BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
For BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
For BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
For BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
note: not for Xi/xd 4 wheel drive

Specification

Top mounts: front pillow ball top mounts with camber plate
rear pillow ball top mounts
Quantity: 2 piece front + 2 pieces rear,a pair wrench for height adjustment
Front Spring Rate: 8 kg/mm (448 lbs/in)
Rear Spring Rate: 7 kg/mm (392 lbs/in)
Color: Gloden
Adjustable damper: 24 ways adjustable damper force
Adjustable height: Yes lowering 1'' to 3''
Shock type: Twin tube
Spring Preload: 7-10 mm
Warranty: 1 year warranty for any manufacturing defect

Features

- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.
- Coilovers are 24-way adjustable. Rebound and Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.
- Pillow ball top mount for sharpening steering response.
- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency and keep shock temps low.
- Height adjustment does not sacrifice damper stroke length.
- These coilovers are able to have their height adjusted without being taken out of the car.
- High Tensile strength performance spring---Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability and performance.
- Adjustment tools included in the kit.

Notice

- Please double confirm before placing order.
- No instruction included; Professional installation is highly recommended.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help.
