I-Beam Connecting Rods Bolts compatible for Audi Compatible for VW EA888 2.0L TSI Gen 3 Engine 144mm
SKU
3002910885
<p> <strong>Application</strong></p>
<p><span><span>Compatible for Audi Compatible for VW EA888 2.0L for TSI Gen 3 Engine<br>
Pin Type: Floating Pin Piston</span></span></p>
<p><br></p><p>
<span><span>Fitment Details:</span></span></p>
<p><span><span>1.8 R4 16v for TSI/TFSI (EA888)：<br>
Compatible for Audi TT Mk2 8J<br>
Compatible for Audi 8P A3<br>
Compatible for Audi B7 A4<br>
Compatible for Audi A4 B8<br>
Compatible for Audi A5<br>
Compatible for SEAT Leon Mk2 1P<br>
Compatible for SEAT Altea XL<br>
Compatible for Skoda Yeti<br>
Compatible for Skoda Octavia Mk2 (1Z, Ming Rui)<br>
Compatible for Skoda Superb Mk2 3T<br>
Compatible for VW Jetta Mk5/Sagitar<br>
Compatible for VW Passat B6<br>
Compatible for VW Passat CC</span></span></p>
<p><span><span>2.0 R4 16v for TSI/TFSI (EA888)：<br>
Compatible for Audi TT Mk2 (8J)<br>
Compatible for Audi A3 Cabriolet<br>
Compatible for Audi A4 (B8)<br>
Compatible for Audi A5<br>
Compatible for Audi Q3 (US Only)<br>
Compatible for Audi Q5<br>
Compatible for Audi S3<br>
Compatible for Skoda Kodiaq<br>
Compatible for Skoda Superb Mk2 (3T)<br>
Compatible for Skoda Octavia RS<br>
Compatible for SEAT Exeo<br>
Compatible for SEAT Leon compatible for Cupra<br>
Compatible for VW Golf Mk7 GTI<br>
Compatible for VW Golf Mk5 GTI (US only)<br>
Compatible for VW Golf Mk6 GTI (US only)<br>
Compatible for VW Tiguan<br>
Compatible for VW Scirocco GTS<br>
Compatible for VW Magotan (Passat)<br>
Compatible for Volkswagen Phideon<br>
Compatible for VW Jetta Mk7 GLI</span></span></p>
<p><br></p>
<p><span><span><strong>Specification</strong></span></span></p>
<p><span><span>*Type: Forged 4340 aircraft chrome moly quality steel for racing <br>

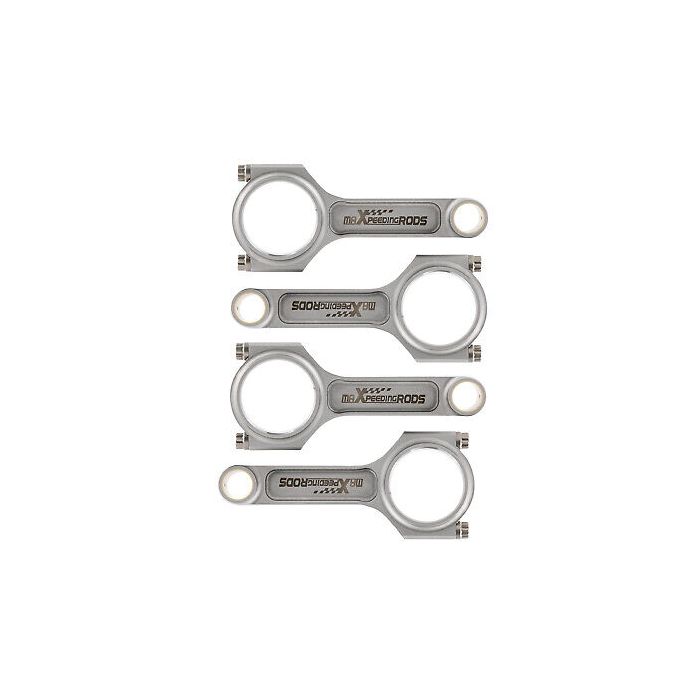

*I-beam Conrods Quantity: 4 Pieces as showing in picture <br>
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts) <br>
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. <br>
*Advertised Horsepower Rating:200HP/piece <br>
*Top acceleration: 9000rpm <br>
*package size：28CM*21CM*10CM<br></span></span>*<span><span>Warranty: one year warranty for any manufacturing defect<br></span></span></p>
<p><br></p>
<p><span><span><strong>Dimensions</strong></span></span></p>
<p><span><span>Center to center length:144mm/5.669"<br>
Big end diameter:50.6mm/1.992"<br>
Small end diameter:23mm/0.906"(not tapered)<br>
Note：21mm Small End is available;<br>
Big end width:21.9mm/0.862"<br>
Small end width:21.9mm/0.862"</span></span></p>
<p> </p>
<p><span><span><strong>Feature</strong></span></span></p>
<p><span><span>1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；<br>
2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；<br>
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；<br>
4.I-Beam reduce inertial force withstand the high gas pressure；<br>
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；<br>
6.High precision CNC machined,Precision rod cap alignment dowels；<br>
7.Bores finished to +/- .01 mm；<br>
8.Balanced to within +/- 1 g per rod；<br>
9. Each rod is magnetic particle tested to ensure free of flaws；<br>
10.Use X-rayed, sonic tested；<br>
11.Custom Service.</span></span></p>
<p><br></p>
<p><span><span><strong>Note</strong></span></span></p>
<p><span><span>*Professional installation is highly recommended ；<br>
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.</span></span></p>
