Compatible for GMC Envoy compatible for Chevy Trailblazer 2WD4WD 2002- Level Lift Kit Front 2 Rear 2.5

SKU
3002032885

Register and log in to view the price.

Compatible for GMC Envoy compatible for Chevy Trailblazer 2WD4WD 2002- Level Lift Kit Front 2 Rear 2.5

Application

Compatible for GMC Envoy 02-09 2WD 4WD

Compatible for Chevy Trailblazer 02-09 2WD 4WD


Specification

Type:  Leveling Kit

Material:

Front Lift Spacers:20# Steel

Rear Lift Spacers:PU

Mounting Hardware:45 Steel

specific: Front 2" + Rear 2.5"

Product Note & Tire Fitment

32" Maximum tire diameter

32x10.50 for no rub on a 8" wide wheel with +12 offset

18" - 255/70R18

20" - 265/60R20

package includes:

2*Front Lift Spacers

2*Rear Lift Spacers

6*Mounting Hardware

Warranty:1 year

Placement: Shock Spacer Block Strut Spring Suspension Body

Weight:3.5KG

Package size: 270*190*100mm

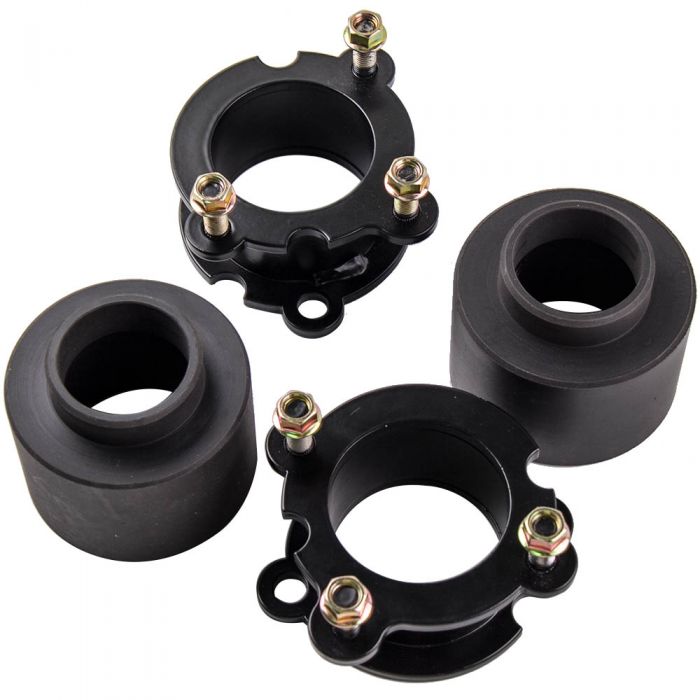

Package Includes

Front Lift Spacers\
Rear Lift Spacers\
Mounting Hardware\
(You will get exactly the same as picture shows)

Feature

1、Precision CNC Laser Cut machining to guarantee fit Perfectly.

2、Military Grade Armor Steel to ensure strength.

3、Complete Installation Hardwares,Easy to Install.

4、Featuring 100% bolt-on installation and a unique design that allows fitment without the need to disassemble the strut. The leveling kit systems will not affect your factory OEM ride quality or comfort level.

5、These spacers will never decrease in height over time.

6、Designed to be compatible with stock / OE / factory shocks.

7、Levels vehicle and eliminates vehicle rake.

8、Enhances appearance by giving the it a more even stance.

9、Offers extra ground clearance to use larger tires & wheels.


Notice

- Lift spacer thickness and lift is not a 1 to 1 ratio due to the suspension geometry.

- This lift kit will raise the front of your compatible for Chevrolet/ GMC by a true 2" the rear by a true 2.5". The real thickness is 82mm.

- Profession installation is highly recommended.

Please allow 1-3cm error due to manual measurement. Thanks for your understanding.

- Block off your rear tires and make sure your vehicle is parked with the emergency brake on. Use a hydraulic jack (jacks from spare tire kits won’t be sufficient) and jack stands to lift your front two wheels off the ground. Refer to your owner’s manual for the correct jacking points to safely lift the vehicle.

- Support with jack stands on the frame of the vehicle – do not rely on the jack to hold the weight of the vehicle while you work.
