Complete Coilovers Kits compatible for Honda Civic 2012-2015 Civic Si 2012-2013 Adj Height

SKU
3002102990

Register and log in to view the price.

Complete Coilovers Kits compatible for Honda Civic 2012-2015 Civic Si 2012-2013 Adj Height
CO-HONCIV-1215-G-NA-VG2
CO-HONCIV-1215-G-NA-VG2
1. Adjustable Height
1. Adjustable Height
Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel
2. High Quality Components
2. High Quality Components
Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response
3.Hi-Tensile Performance Spring
3.Hi-Tensile Performance Spring
Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved
4.Twin-tube Constructioneal
4.Twin-tube Constructioneal
Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for HONDA CIVIC 2012-2015 (FG3) USA 2 door coupe EXC. SI/EX/EX-L\
compatible for HONDA CIVIC 2012-2015 USA (FB2)4 door sedan EXC. SI\
compatible for ACURA ILX 2013-2015 USA

Specification

Top mounts: Front pillow ball top mount\
Damping: Not available\
Shock type: Twin tube\
Adjustable camber plate: Front only\
Spring preload: 7-10 mm\
Spring rate Front: 7 kg/mm (392 in/lbs)\
Spring rate Rear: 7 kg/mm (392 in/lbs)\
Spring length Front: 200mm\
Spring length Rear: 160mm\
Adjustable height: lowering 1-3 inch\
Coilover overall length Front: 450mm-570mm\
Coilover overall length Rear: 535mm-580mm\
color: Golden

Package included

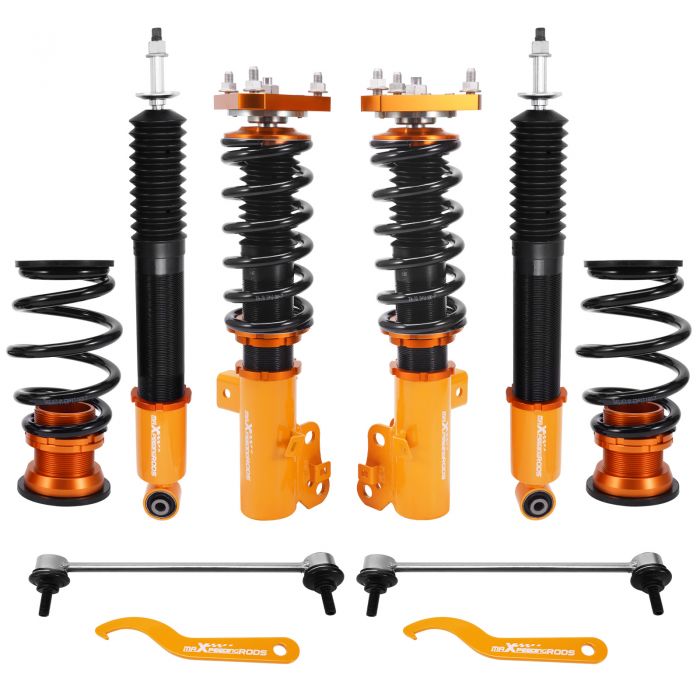

product included: complete coilovers 2 pieces front + 2 pieces rear , 2 x Spanners, 1 Pair Sway bar as shown in the picture

Dimension

Size: 63*51*21 cm\
Weight: 25.28 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance. \
Twin-Tube structure allows sufficient stroke within the shock absorber.\
Pillow ball top mount - It improves the steering feel and response.\
Camber plate top mounts help to eliminate the need for a separate camber kit.\
Separate height adjustment does not affect damper stroke.\
Height can be adjusted with coilovers installed on the vehicle.\
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
Height Adjustment tools included.\
Full rebuildable.
