MaX Full Coilovers Suspension Spring Kit compatible for Nissan Silvia s13 coilovers 180SX 240sx coilovers

SKU

3002103671

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1. Adjustable Height

Able to lower ride height by 1''-3''; allows user to have a more aggressive stance and can adjust without taking coilovers out the car

2.High Quality Components

Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

3.High Tensile Strength Spring

Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%

4.Twin-tube Construction

Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Nissan S13 Silvia Japan Market 89-93 \
Compatible for Nissan S13 180SX Japan Market 89-98 \
Compatible for Nissan S13 200SX Europe/New Zealand Market 89-94 \
Compatible for Nissan S13 240SX North America 89-90 \
Compatible for Nissan S13 Sileighty Japan Market 98

Specification

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear\
Damping: No adjustable damper force\
Front Spring Rate: 8kg/mm(448lbs/in)\
Rear Spring Rate: 7 kg/mm (392lbs/in)\
Adjustable Height: Yes lowering 1" to 3"\
Shock type: Twin tube\
Spring Preload: 7-10 mm\
Color: gold

Package included

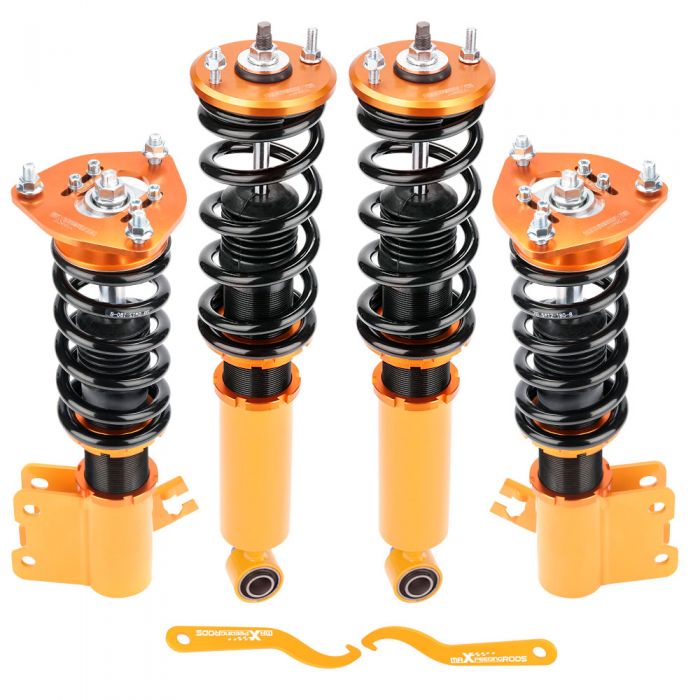

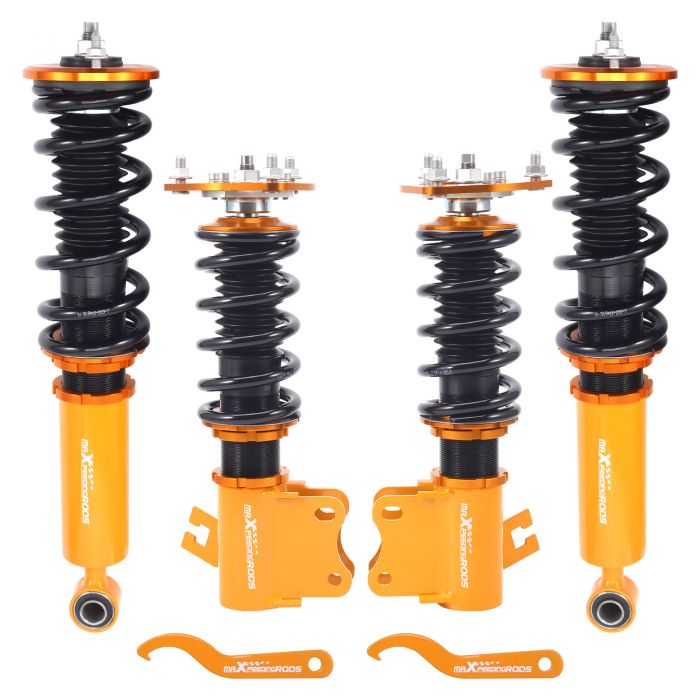

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 23.98kg\
Package size: 63*51*21cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.\
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)\
3.Pillow ball top mount - It improves the steering feel and response.（Front Only)\
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (only rear)\
5. Twin-Tube structure allows sufficient stroke within the shock absorber.\
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.\
7. Separate height adjustment does not affect damper stroke.\
8. Height can be adjusted with coilovers installed on the vehicle.\
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.\
10. Height Adjustment tools included. \
11. Full rebuildable.
