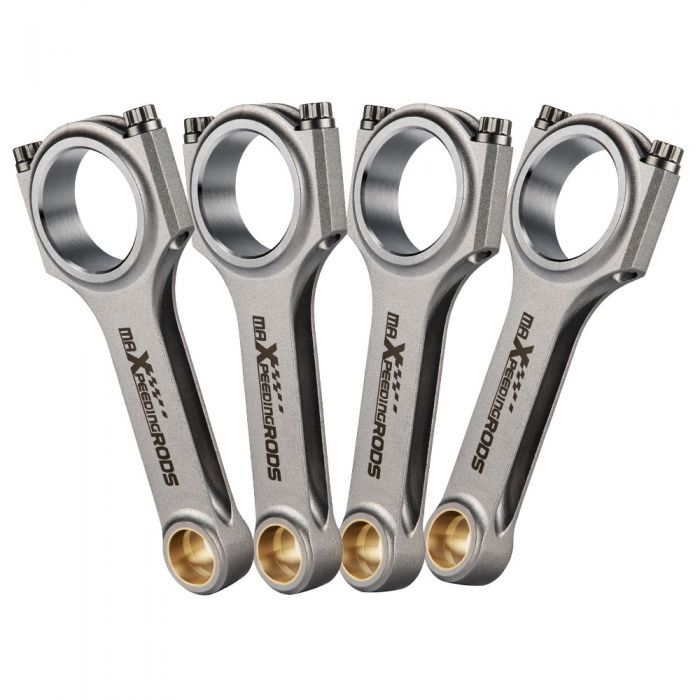

Compatible for Peugeot 106 GTi / S16 1.6L TU5J4 133.5mm Connecting Rod - High Performance 4340 EN24 H-Beam Conrod

SKU
3002032223

Register and log in to view the price.

Compatible for Peugeot 106 GTi / S16 1.6L TU5J4 133.5mm Connecting Rod - High Performance 4340 EN24 H-Beam Conrod
CR-PEU-133.5B
CR-PEU-133.5B
1. High Performance Material
1. High Performance Material
Forged 4340 EN24 aircraft chrome moly quality steel for racing
2.High Quality Components
2.High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
3.Professional H-Beam Design
3.Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
4.Precision Machining Manufacturing
4.Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

Application

Compatible for Peugeot 106 GTi / S16 1.6L TU5J4

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine 3/8" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 133.5mm
Big end diameter:48.66mm
Small end diameter: 19.46mm
Big end width: 24mm
Small end width: 19.5mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size andeliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
