Height Adjustable Coilovers compatible for Honda Prelude 1992-2001 Lowering Shocks Struts

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for HONDA PRELUDE BB1/BB2 1992-1996
\ Compatible for HONDA PRELUDE SIR/SIR S SPEC/TYPE S BB6/BB8 1996.11-2000.08

Specification

Top mounts: pillow ball top mounts
\ Damping: not available
\ Spring rate Front: 8 kg/mm (448 lbs/in)
\ Spring rate Rear: 7 kg/mm (392 lbs/in)
\ Spring length Front: 180mm
\ Spring length Rear: 200mm
\ Adjustable height: lowering 1-3 inch
\ Coilover overall length Front: 420mm-465mm
\ Coilover overall length Rear: 550mm-645mm
\ Shock type: Twin tube
\ Spring preload: 7-10 mm
\ Color: blue

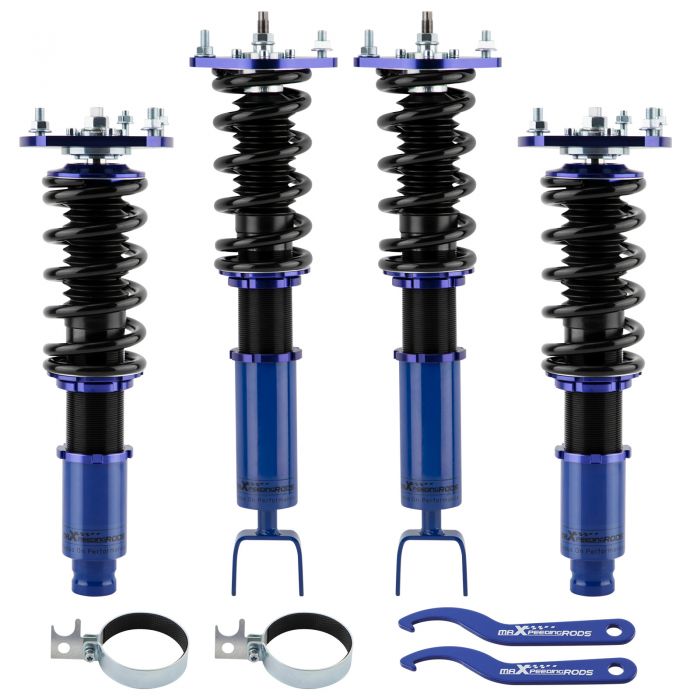

Package included

complete coilovers for 2 front and 2 rear
\ a pair wrench for height adjustment

Dimension

weight: 24220g
\ size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
\ 2. Twin-Tube structure allows sufficient stroke within the shock absorber
\ 3. Separate height adjustment does not affect damper stroke
\ 4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
\ 5. Height Adjustment tools included
\ 6. Pillow ball top mount - It improves the steering feel and response
\ 7. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
\ 8. Full rebuildable
